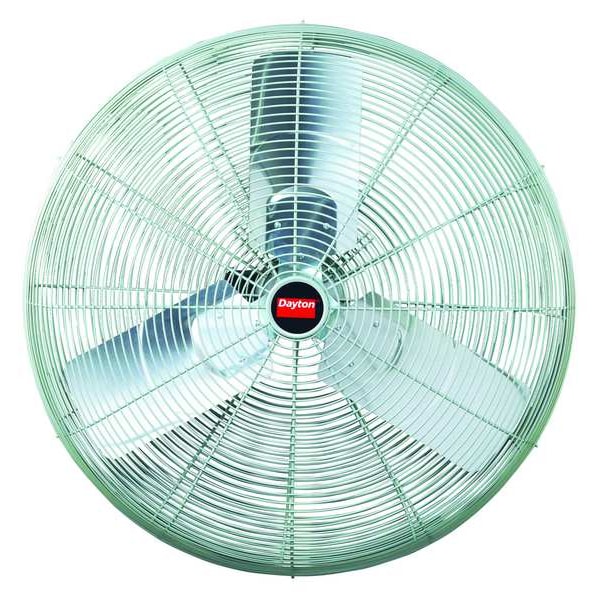

Standard Duty Industrial Fan, Phase 1
| Oscillation | Non-Oscillating |
|---|---|
| Height Adjustment | Fixed Height |
| Air Velocity @ 40 Ft. | 300/280 fpm |
| Bearing Type | Ball |
| Thermal Protection | Automatic Reset |
| Features | Mounting Bolts |
| Wire Guard Finish | Powder Coated |
| Phase | 1 |
| Blade Material | Aluminum |
| Includes | Air Circulator, Misting Hub Kit, Mounting Bracket |
| Motor Enclosure | Totally Enclosed Air Over |
| Max. Ambient Temp. | 104 deg F |
| Environmental Applications | Industrial |
| Blade Diameter | 30 in |
| Air Flow | 8,800/9,800 cfm |
| Air Velocity @ 10 Ft. | 1250/1070 fpm |
| Motor Design | Permanent Split Capacitor |
| Motor Insulation | Class B |
| Wheeled Base | Stationary |
| Color | Gray |
| Height | 33 in |
| Shaft Dia. | 1/2 in |
| Number of Blades | 3 |
| Assembly Required | No |
| Air Velocity @ 20 Ft. | 760/705 fpm |
| NEMA Plug Configuration | 5-15P |
| Motor HP | 0.5 |
| Amps | 3.3/4.2 |
| Width | 33 in |
| Voltage | 115V AC |
| Depth | 13-9/16 in |
| Guard Material | Steel |
| Standards | UL, cUL, OSHA |
| Sound Level | 75dBA |
| Hz | 60 |
| Number of Speeds | 2 |
| Watts | 370/450 |
| Item | Standard-Duty Industrial Fan |
| Fan Mounting Location | Wall, Ceiling, Post |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
