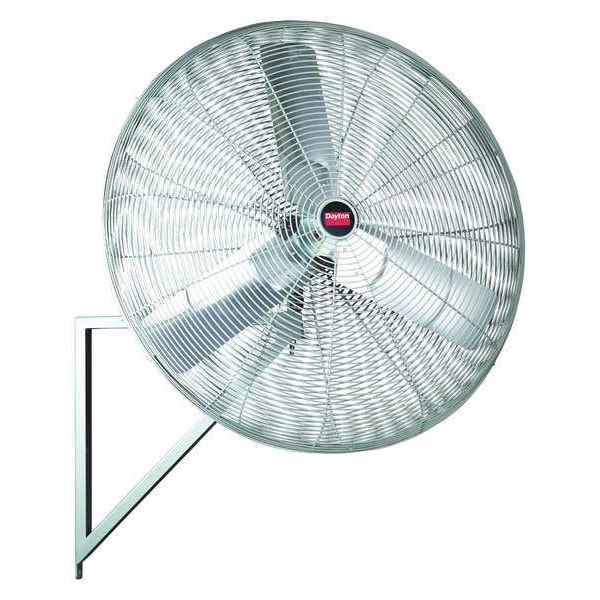

Standard Duty Industrial Fan, Phase 1
| Guard Material | Steel |
|---|---|
| Air Flow | 6,050 cfm |
| Height Adjustment | Fixed Height |
| Voltage | 208V AC |
| Depth | 24-1/4 in |
| Amps | 2.3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Standards | UL, cUL, OSHA |
| Color | Gray |
| Fan Mounting Location | Wall, Ceiling, Post |
| Features | Wall Bracket, Conduit Box |
| Bearing Type | Ball |
| Air Velocity @ 20 Ft. | 450 fpm |
| Assembly Required | No |
| Hz | 60 |
| Wheeled Base | Stationary |
| Oscillation | Non-Oscillating |
| Width | 27 in |
| Number of Blades | 3 |
| Sound Level | 74dBA |
| Shaft Dia. | 1/2 in |
| Motor Design | Permanent Split Capacitor |
| Height | 31 in |
| Phase | 1 |
| Thermal Protection | Automatic Reset |
| Number of Speeds | 1 |
| Motor HP | 0.5 |
| Air Velocity @ 10 Ft. | 1,000 fpm |
| Blade Diameter | 24 in |
| NEMA Plug Configuration | Hardwired |
| Max. Ambient Temp. | 104 deg F |
| Watts | 430 |
| Wire Guard Finish | Powder Coated |
| Environmental Applications | Industrial |
| Motor Insulation | Class B |
| Air Velocity @ 40 Ft. | 200 fpm |
| Includes | Air Circulator, Mounting Bracket |
| Item | Standard-Duty Industrial Fan |
| Blade Material | Aluminum |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
