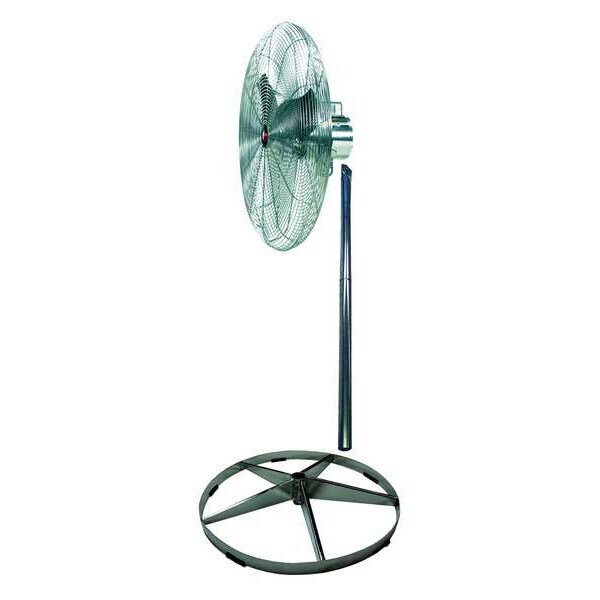

Standard Duty Industrial Fan, Phase 1
| Watts | 120 |
|---|---|
| Blade Diameter | 20 in |
| Number of Speeds | 1 |
| Air Velocity @ 20 Ft. | 225 fpm |
| Depth | 10-1/2 in |
| Thermal Protection | Automatic Reset |
| Hz | 60 |
| Motor Insulation | Class B |
| Phase | 1 |
| Color | Gray |
| Amps | 1.1 |
| Max. Ambient Temp. | 105 deg F |
| Air Velocity @ 10 Ft. | 450 fpm |
| Blade Material | 304 Stainless Steel |
| Features | Stainless Steel Wall Bracket, Mounting Bolts, Secondary Safety Support Cable |
| Guard Material | 304 Stainless Steel |
| Motor HP | 1/15 hp |
| Sound Level | 68dBA |
| Standards | cULus, OSHA, BISSC, USDA, NSF |
| Oscillation | Non-Oscillating |
| Motor Enclosure | Totally Enclosed Non-Ventilated |
| Assembly Required | No |
| Number of Blades | 3 |
| Fan Mounting Location | Pedestal |
| Shaft Dia. | 1/2 in |
| Height Adjustment | Fixed Height |
| Wheeled Base | Stationary |
| Base Dia. | 30 in |
| Includes | Washdown Air Circulator, Floor Pedestal, Open Base |
| Bearing Type | Ball |
| NEMA Plug Configuration | Hardwired |
| Motor Design | Permanent Split Capacitor |
| Width | 22-1/2 in |
| Item | Standard-Duty Industrial Fan |
| Voltage | 115V AC |
| Air Velocity @ 40 Ft. | 30 fpm |
| Air Flow | 2,670 cfm |
| Height | 22-1/2 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
