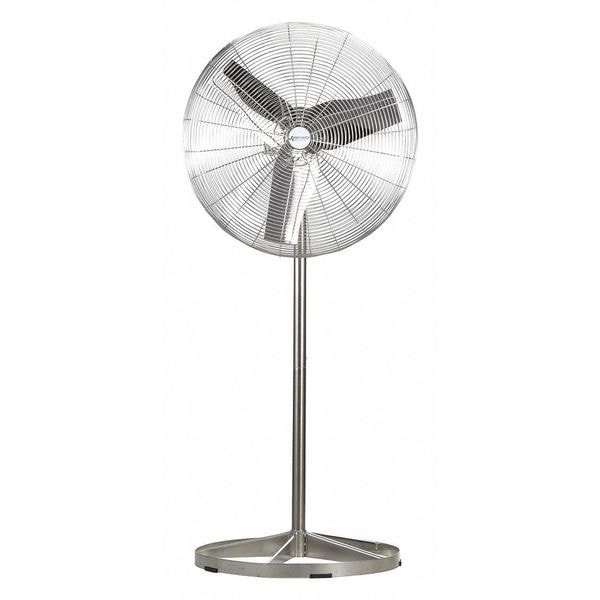

Standard Duty Industrial Fan, Phase 1
| Air Velocity @ 40 Ft. | 198 fpm |
|---|---|
| Motor Enclosure | Totally Enclosed Non-Ventilated |
| Air Flow | 5,220 cfm |
| Sound Level | 77dBA |
| Assembly Required | No |
| Air Velocity @ 20 Ft. | 600 fpm |
| Depth | 15 in |
| Blade Material | 304 Stainless Steel |
| Number of Speeds | 1 |
| Base Dia. | 30 in |
| Item | Standard-Duty Industrial Fan |
| Motor HP | 0.25 |
| Air Velocity @ 60 Ft. | 135 fpm |
| Includes | Washdown Air Circulator, Floor Pedestal, Open Base |
| Hz | 60 |
| Air Velocity @ 80 Ft. | 10 fpm |
| Color | Gray |
| Thermal Protection | Automatic Reset |
| Oscillation | Non-Oscillating |
| Fan Mounting Location | Pedestal |
| Motor Insulation | Class B |
| Height Adjustment | Fixed Height |
| Motor Design | Permanent Split Capacitor |
| Blade Diameter | 24 in |
| Max. Ambient Temp. | 105 deg F |
| Phase | 1 |
| Height | 33 in |
| Features | Stainless Steel Wall Bracket, Mounting Bolts, Secondary Safety Support Cable |
| Wheeled Base | Stationary |
| Standards | cULus, OSHA, BISSC, USDA, NSF |
| Air Velocity @ 10 Ft. | 875 fpm |
| Guard Material | 304 Stainless Steel |
| Number of Blades | 3 |
| Shaft Dia. | 1/2 in |
| Width | 33 in |
| Amps | 1.7/3.3 |
| NEMA Plug Configuration | Hardwired |
| Watts | 280/295 |
| Bearing Type | Ball |
| Voltage | 115/230V AC |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
