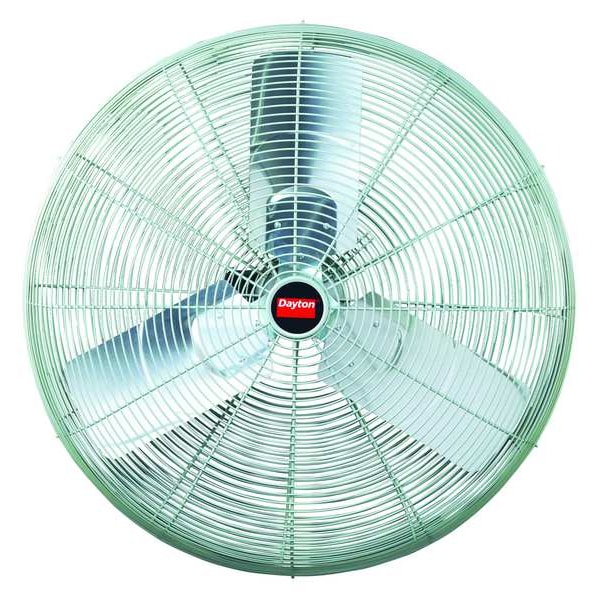

Standard Duty Industrial Fan, Phase 3
| Air Velocity @ 40 Ft. | 330 fpm |
|---|---|
| Hz | 60 |
| Blade Diameter | 30 in |
| Blade Material | Aluminum |
| Color | Gray |
| Fan Mounting Location | Wall, Ceiling, Post |
| Bearing Type | Ball |
| Item | Standard-Duty Industrial Fan |
| Depth | 13-9/16 in |
| Voltage | 208 to 230/460V AC |
| Thermal Protection | No Thermal Protection |
| Guard Material | Steel |
| Height Adjustment | Fixed Height |
| Shaft Dia. | 1/2 in |
| Motor Design | 3-Phase |
| Number of Speeds | 1 |
| Environmental Applications | Industrial |
| NEMA Plug Configuration | Hardwired |
| Air Flow | 9,450 cfm |
| Wheeled Base | Stationary |
| Oscillation | Non-Oscillating |
| Width | 33 in |
| Includes | Air Circulator, Mounting Bracket |
| Height | 33 in |
| Max. Ambient Temp. | 104 deg F |
| Assembly Required | No |
| Wire Guard Finish | Powder Coated |
| Air Velocity @ 20 Ft. | 755 fpm |
| Motor Insulation | Class B |
| Motor HP | 0.5 |
| Watts | 430 |
| Sound Level | 75dBA |
| Standards | UL, cUL, OSHA |
| Amps | 1.1/2.2 |
| Air Velocity @ 10 Ft. | 1,200 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| Phase | 3 |
| Features | Conduit Box |
| Number of Blades | 3 |
| Motor Type | 3 Phase |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
