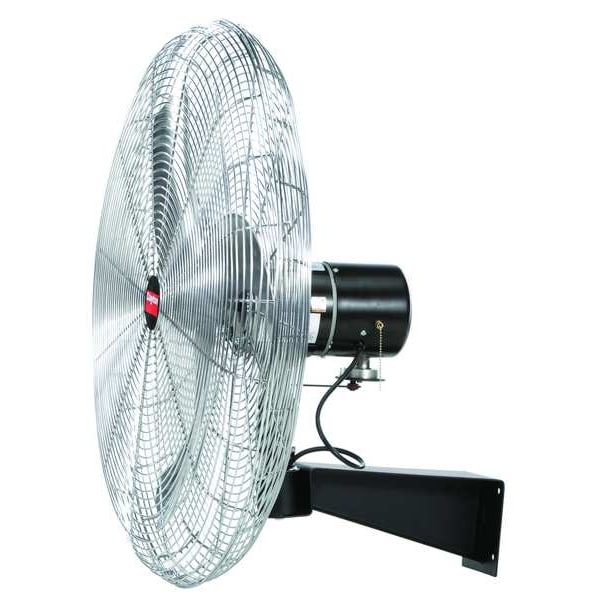

Standard Duty Quiet Design Industrial Fan, Wall Mount, 18 in Blade Dia, 115V, 1,805/2,113/2,600 cfm
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Blade Diameter | 18 in |
| Oscillation | Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.2 HP |
| Air Flow | 1,805/2,113/2,600 cfm |
| Drive Type | Direct Drive |
| Blade Material | Cast Aluminum |
| Sound Level | 68/62/59 dBA |
| Item | Quiet Design Industrial Fan |
| Bearing Type | Ball |
| Height | 23-7/16 in |
| Air Velocity @ 40 Ft. | 110 fpm |
| Application | Spot Cooling and People Cooling |
| Full Load Amps | 1.41 |
| Outside Dia. | 23 in |
| Thermal Protection | Automatic |
| Motor Insulation | Class B |
| NEMA Plug Configuration | 5-15p |
| Number of Blades | 3 |
| Motor Enclosure | Totally Enclosed Air Over |
| Fan Accessory Style | Quiet Design |
| Number of Conductors | 3 |
| Max. Ambient Temp. | 105 deg F |
| CFM Low | 1,805 |
| Shaft Dia. | 5/8 in |
| Motor RPM | 1,125 RPM |
| CFM/Watt | 15.7 |
| Housing Material | Steel |
| Environmental Applications | Industrial |
| CFM Medium | 2,113 |
| Width | 23-7/16 in |
| Wire Guard Finish | Nickel Chrome |
| Hz | 60 |
| CFM High | 2,600 |
| Fan Style | Standard Duty |
| Guard Material | Steel |
| Assembled | No |
| Standards | UL, cUL, OSHA |
| Motor Type | Permanent Split Capacitor |
| Air Velocity @ 20 Ft. | 230 fpm |
| Mobile/Stationary | Stationary |
| Air Velocity @ 10 Ft. | 415 fpm |
| Max. Depth | 21-3/4 in |
| Includes | Mounting Device and Mounting Bolts |
| Fan Mounting Location | Wall |
| Watts | 165 W |
| Requires | Assembly |
| Assembly Required | Yes |
| Depth | 21-3/4 in |
| Fan Housing Material | Steel |
| Fan Cord Length | 15 ft |
| Wheeled Base | Stationary |
| RPM | 1125 |
| Amps | 1.41 |
| Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
