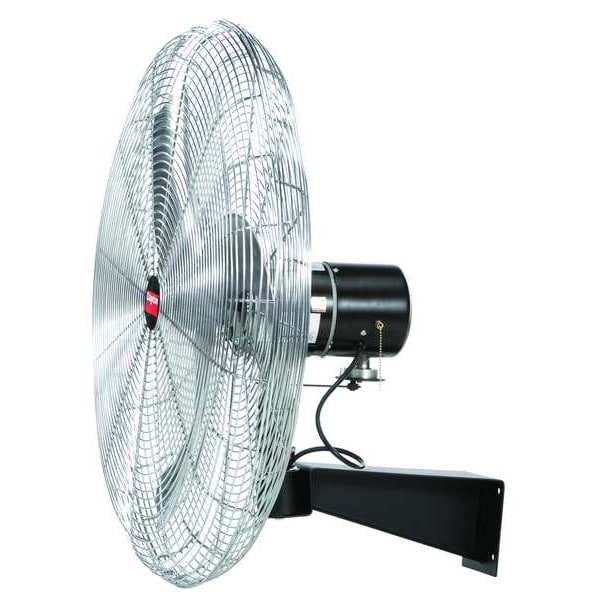

Standard Duty Quiet Design Industrial Fan, Wall Mount, 30 in Blade Dia, 115V, 4,063/5,859/7,996 cfm
| Blade Diameter | 30 in |
|---|---|
| Oscillation | Oscillating |
| Number of Speeds | 3 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 0.3333 HP |
| Air Flow | 4,063/5,859/7,996 cfm |
| Drive Type | Direct Drive |
| Blade Material | Cast Aluminum |
| Sound Level | 75/69/63 dBA |
| Item | Quiet Design Industrial Fan |
| Mobile/Stationary | Stationary |
| Motor RPM | 1,045/789/561 RPM |
| CFM High | 7,996 |
| Air Velocity @ 20 Ft. | 600/480/360 fpm |
| CFM Medium | 5,859 |
| Hz | 60 |
| Requires | Assembly |
| Application | Spot Cooling and People Cooling |
| Assembled | No |
| Max. Depth | 21-3/4 in |
| Watts | 300 W |
| Shaft Dia. | 5/8 in |
| CFM/Watt | 26.6 |
| Width | 33-5/16 in |
| Number of Conductors | 3 |
| Max. Ambient Temp. | 105 deg F |
| Standards | UL, cUL, OSHA |
| Height | 33-5/16 in |
| Bearing Type | Ball |
| Housing Material | Steel |
| Number of Blades | 3 |
| Fan Style | Standard Duty |
| Motor Type | Permanent Split Capacitor |
| CFM Low | 4,063 |
| Fan Mounting Location | Wall |
| Outside Dia. | 33-5/16 in |
| Includes | Mounting Device and Mounting Bolts |
| Motor Insulation | Class B |
| Air Velocity @ 60 Ft. | 200/160/120 fpm |
| Air Velocity @ 80 Ft. | 150 fpm |
| Guard Material | Steel |
| Wire Guard Finish | Nickel Chrome |
| Air Velocity @ 10 Ft. | 900/721/540 fpm |
| Motor Enclosure | Totally Enclosed Air Over |
| NEMA Plug Configuration | 5-15p |
| Fan Accessory Style | Quiet Design |
| Air Velocity @ 40 Ft. | 350/279/209 fpm |
| Environmental Applications | Industrial |
| Thermal Protection | Automatic |
| Fan Cord Length | 15 ft |
| Assembly Required | Yes |
| Fan Housing Material | Steel |
| Depth | 21-3/4 in |
| Wheeled Base | Stationary |
| RPM | 1045/789/561 |
| Amps | 2.9 |
| Material | Steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
