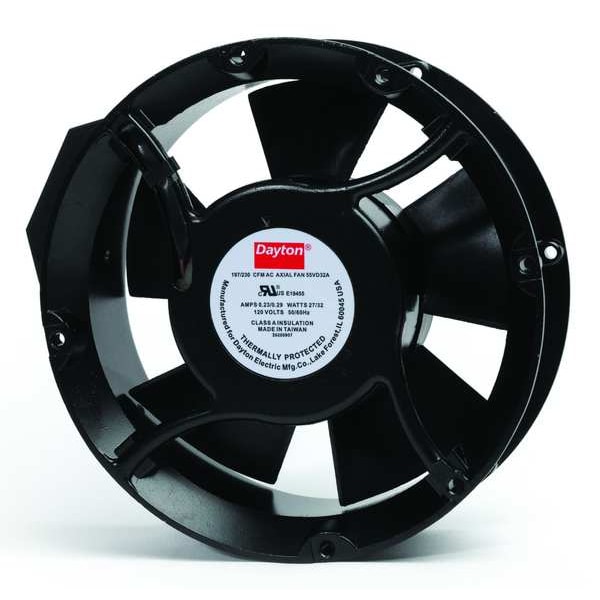

Standard Round Axial Fan, 120V AC, 230 cfm cfm
| Blade Material | PBT Plastic |
|---|---|
| CFM @ 0.000-In. SP | 230 cfm |
| Depth | 2 in |
| Housing Material | Aluminum |
| Watts | 0.8438 |
| Voltage | 120V AC |
| Mounting Position | Vertical or Horizontal |
| Fan Shape | Round |
| Amps | 0.23/0.29 A |
| Standards | cULus, RoHS |
| Fan Cord Length | No Cord |
| Color | Black |
| Diameter | 6-3/4 in |
| RPM | 2900/3300 RPM |
| Item | Standard Round Axial Fan |
| IP Rating | IP33 |
| Max. Ambient Temp. | 176 deg F |
| Motor Design | Permanent Split Capacitor |
| Sound Level | 58/62 |
| Hz | 50/60 Hz |
| Air Flow | 197/230 cfm |
| Mounting Eye O.C. | 6-3/8 in |
| Motor Insulation | Class A |
| Electrical Connection - Fans | Terminals |
| Environmental Applications | Equipment Cooling |
| Requires | Cord Set (Not Included) |
| Bearing Type | Ball |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
