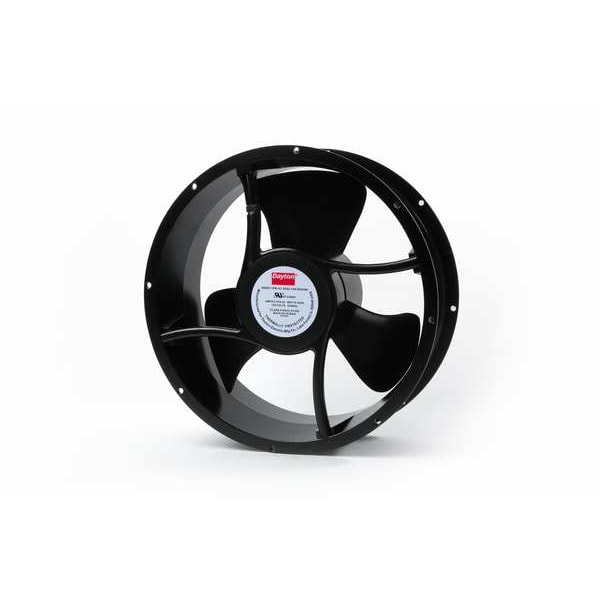

Standard Round Axial Fan, 120V AC, 527 cfm cfm
| Blade Material | Polycarbonate |
|---|---|
| CFM @ 0.000-In. SP | 527 cfm |
| Depth | 3-1/2 in |
| Housing Material | Aluminum |
| Watts | 42/43 W |
| Voltage | 120V AC |
| Bearing Type | Ball |
| Color | Black |
| Max. Ambient Temp. | 176 deg F |
| Mounting Position | Vertical or Horizontal |
| Requires | Cord Set (Not Included) |
| IP Rating | IP33 |
| Fan Shape | Round |
| Motor Design | Permanent Split Capacitor |
| Fan Cord Length | No Cord |
| Electrical Connection - Fans | Terminals |
| Environmental Applications | Equipment Cooling |
| RPM | 1400/1700 RPM |
| Air Flow | 452/527 cfm |
| Motor Insulation | Class A |
| Amps | 0.37/0.38 A |
| Standards | cULus, RoHS |
| Mounting Eye O.C. | 9-11/16 in |
| Diameter | 10 in |
| Sound Level | 51/54 |
| Item | Standard Round Axial Fan |
| Hz | 50/60 Hz |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
