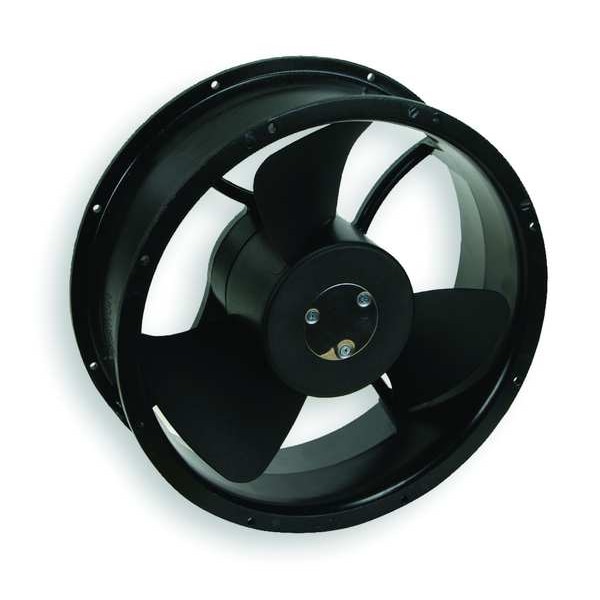

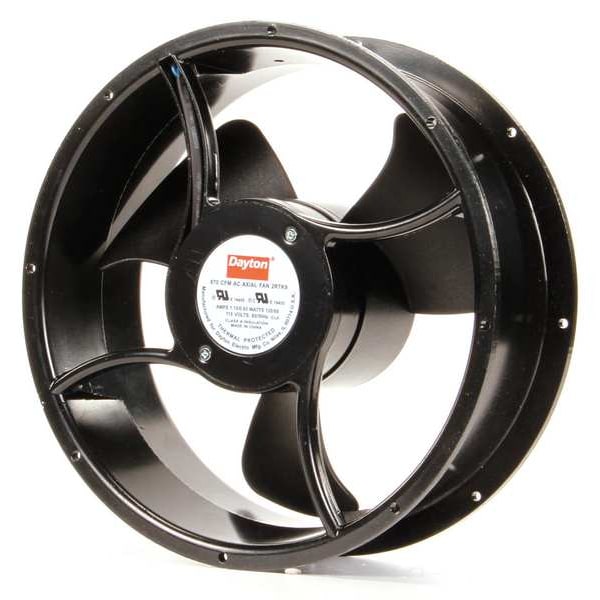

Standard Round Axial Fan, Round, 115V AC, 1 Phase, Aluminum, 10" W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 870 cfm |
| Depth | 3-1/2 in |
| Housing Material | Aluminum |
| Phase | 1 |
| Shape | Round |
| Watts | 88/120 W |
| Width | 10 in |
| Voltage | 115V AC |
| Bearings | Ball |
| Fan Depth | 3-1/2 in |
| Motor Type | PSC |
| Max. Ambient Temp. | 158 deg F |
| Standards | CE Certified and RoHS Compliant, UL Component Recognized for US and Canada |
| Housing Finish | Black |
| Electrical Connection - Fans | Terminals |
| Thermal Protection | Auto |
| Fan Dia. | 10 in |
| Hz | 60/50 Hz |
| dBA | 70 |
| Mounting Eye O.C. - Fans | 9-11/16 in |
| Amps | 1.1/0.83 A |
| Item | Standard Round Axial Fan |
| Mounting Eye O.C. | 9-11/16 in |
| Electrical Connections | Terminals |
| Fan Item | Axial Fan |
| Requires | Cord Set (Not Included) |
| Fan RPM | 2600/2900 |
| Fan Watts | 88.0/120.0 |
| Fan Shape | Round |
| Motor Insulation | Class A |
| Fan dBA | 68.0/70.0 |
| Fan Voltage | 115VAC |
| Mounting Position | Vertical or Horizontal |
| IP Rating | IP20 |
| Diameter | 10 in |
| Environmental Applications | Equipment Cooling |
| RPM | 2900/2600 RPM |
| Color | Black |
| Bearing Type | Ball |
| Motor Design | PSC |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
