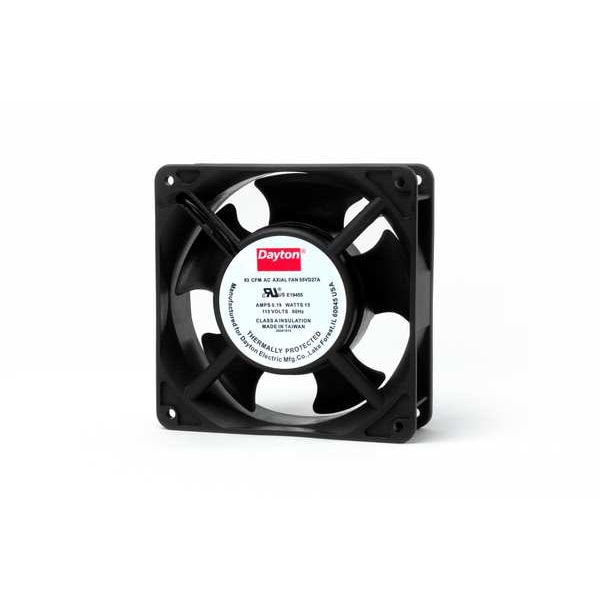

Standard Square Axial Fan, 115V AC, PBT Plastic, 4 11/16 in W.
| Blade Material | PBT Plastic |
|---|---|
| CFM @ 0.000-In. SP | 93 cfm |
| Depth | 1-1/2 in |
| Height | 4-11/16 in |
| Housing Material | PBT Plastic |
| Watts | 15 |
| Width | 4-11/16 in |
| Voltage | 115V AC |
| Item | Standard Square Axial Fan |
| Motor Design | Shaded Pole |
| Fan Shape | Square |
| Mounting Position | Horizontal |
| Environmental Applications | Equipment Cooling |
| IP Rating | IP33 |
| Electrical Connection - Fans | Terminals |
| Fan Cord Length | No Cord |
| Color | Black |
| Air Flow | 93 cfm |
| Sound Level | 49 |
| Motor Insulation | Class A |
| RPM | 3000 RPM |
| Hz | 60 Hz |
| Bearing Type | Sleeve |
| Max. Ambient Temp. | 158 deg F |
| Standards | cULus, RoHS |
| Amps | 0.19 |
| Mounting Eye O.C. | 4-1/8 in |
| Requires | Cord Set (Not Included) |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
