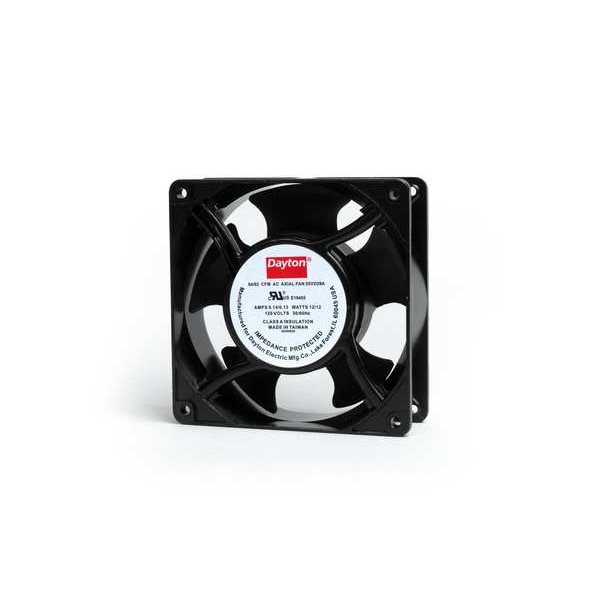

Standard Square Axial Fan, 120V AC, Aluminum, 4 11/16 in W.
| Blade Material | PBT Plastic |
|---|---|
| CFM @ 0.000-In. SP | 25/28 cfm |
| Depth | 1-1/2 in |
| Height | 4-11/16 in |
| Housing Material | Aluminum |
| Watts | 12/12 W |
| Width | 4-11/16 in |
| Voltage | 120V AC |
| Bearing Type | Ball |
| Environmental Applications | Equipment Cooling |
| Fan Cord Length | No Cord |
| Fan Shape | Square |
| Max. Ambient Temp. | 176 deg F |
| Motor Design | Shaded Pole |
| Motor Insulation | Class A |
| Hz | 50/60 Hz |
| Mounting Position | Vertical or Horizontal |
| Requires | Cord Set (Not Included) |
| Standards | cULus, RoHS |
| Air Flow | 84/92 cfm |
| Sound Level | 46/47 |
| Mounting Eye O.C. | 4-1/8 in |
| Item | Standard Square Axial Fan |
| IP Rating | IP33 |
| Amps | 0.14/0.13 A |
| Electrical Connection - Fans | Terminals |
| RPM | 2550/2750 RPM |
| Color | Black |
| Country of Origin (subject to change) | Taiwan, Province of China |
| Package Quantity | 1 |
