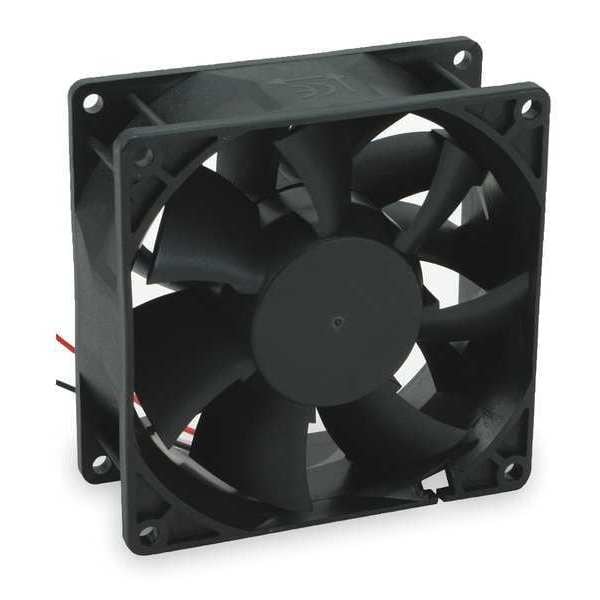

Standard Square Axial Fan, Square, 48V DC, - Phase, PBT Plastic, 3 1/8 in W.
| Blade Material | Polybutylene |
|---|---|
| CFM @ 0.000-In. SP | 84 cfm |
| Depth | 1-1/2 in |
| Height | 3-1/8 in |
| Housing Material | PBT Plastic |
| Shape | Square |
| Watts | 6.7 |
| Width | 3-1/8 in |
| Voltage | 48V DC |
| Fan Width | 3-1/8 in |
| Thermal Protection | Impedance |
| Electrical Connection - Fans | Lead Wires |
| Fan RPM | 4,900 |
| Mounting Position | Vertical or Horizontal |
| Max. Ambient Temp. | 158 deg F |
| Fan Item | Axial Fan |
| Mounting Eye O.C. - Fans | 2-13/16 in |
| Electrical Connections | 12" Leads |
| Fan Width | 3-1/8 in |
| Standards | CE Certified and RoHS Compliant, UL Component Recognized for US and Canada |
| dBA | 51.6 |
| Mounting Eye O.C. | 2-13/16 in |
| Fan Shape | Square |
| Housing Finish | Black Painted |
| Motor Insulation | Class A |
| Bearings | Ball |
| Fan Watts | 6.7 |
| Item | Standard Square Axial Fan |
| Fan Depth | 1-1/2 in |
| Fan dBA | 51.6 |
| Amps | 0.14 |
| Fan Height | 3-1/8 in |
| Fan Voltage | 48VDC |
| IP Rating | IP20 |
| Motor Design | Brushless DC |
| Environmental Applications | Equipment Cooling |
| Color | Black |
| Bearing Type | Ball |
| RPM | 4900 RPM |
| Shop By | Closeouts |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |
