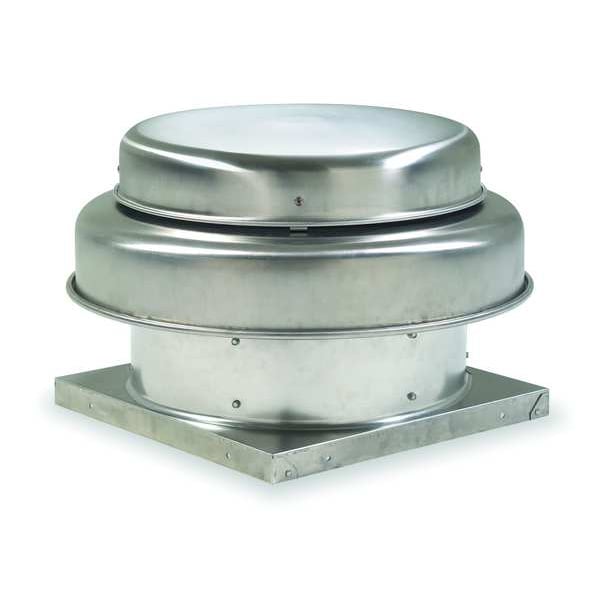

Supply Ventilator, 16 In, 208-230/460 V
| Item | Axial Downblast Roof Supply Fan |
|---|---|
| Propeller Dia. | 16 in |
| Voltage | 208-230/460 |
| Motor HP | 0.75 |
| Standards | AMCA Sound and Air, UL/cUL 705 |
| Propeller Material | Aluminum |
| Sones @ 0.250-In. SP @ 5 Ft. | 20 |
| Base Length | 26 in |
| Overall Dia. | 35-1/4 in |
| Dimension B | 35-1/4 in |
| CFM @ 0.000-In. SP | 2,920 |
| RPM | 1750 |
| CFM @ 0.125-In. SP | 2,802 |
| Recommended 8 In. Fixed Curb Item No. | 4HX40 |
| Includes | NEMA 1 Junction Box |
| Phase | 3 |
| Base Width | 26 in |
| Dimension C | 17-1/4 in |
| Recommended 12 In. Fixed Curb Item No. | 2RB77 |
| Requires | Roof Curb for New Installation |
| Adj. 6 3/8"H Roof Curb Stock No. | 4c454 |
| CFM @ 0.750-In. SP | 1,693 |
| CFM @ 0.250-In. SP | 2,602 |
| Recommended Damper Size | 19 in x 19 in |
| Hz | 60 |
| Base Height | 1 3/4 in |
| Speed Controllable | No |
| Mounting Location | Roof |
| Dimension A | 26 in |
| Sones @ 0.125-In. SP @ 5 Ft. | 21 |
| CFM @ 0.375-In. SP | 2,376 |
| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV83 |
| Max. BHP | 0.5129 |
| CFM @ 0.625-In. SP | 1,965 |
| Max. Inlet Temp. | 120 Degrees F |
| Max. Operating Amps | 2.7-2.4/1.2 |
| Overall Height | 19 in |
| CFM @ 0.875-In. SP | 1,475 |
| CFM @ 1.000-In. SP | 1,200 |
| Recommended Damper Stock No. | 4HX66 |
| Housing Material | Aluminum |
| Shaft Dia. Propeller End | 1/2 in |
| Base Top to Shroud | 6 1/4 in |
| CFM @ 0.500-In. SP | 2,188 |
| Dimension D | 6-1/4 in |
| Overall Width | 35-1/4 in |
| Features | Fully Rolled Baffle Bead for Stability and Ease of Transport With Spun Aluminum Hood Construction, Galvanized Steel Venturi, Inlet and Supports, NEMA 1 Junction Box Located in Motor Enclosure |
| Overall Length | 35-1/4 in |
| Compatible Curb Manufacturer Part Number | 2RB77, 2ZV83, 3C437, 4C454, 4HX40, 4HX48 |
| Motor Enclosure | Totally Enclosed Air Over |
| Number of Speeds | 1 |
| Includes Drive Package | Yes |
| Blade Diameter | 16 in |
| Cutout Length | 21-1/2 in |
| Propeller Shaft Diameter | 1/2 in |
| Exhaust Airflow @ 0.500 in SP | 2,188 cfm |
| Nameplate Voltage | 208/230/460V AC |
| Blade Material | Aluminum |
| Damper Size | 19 in x 19 in |
| Supply Airflow @ 0.125 in SP | 2,802 cfm |
| Maximum Static Pressure | 1 in wc |
| Supply Airflow @ 0.500 in SP | 2,188 cfm |
| Current | 2.7-2.4/1.2 A |
| Exhaust Airflow @ 0.000 in SP | 2,920 cfm |
| Includes Motor | Yes |
| Housing Width | 35.3 in |
| Exhaust Airflow @ 0.375 in SP | 2,376 cfm |
| Number of Blades | 4 |
| Housing Material Fabrication | Spun |
| Electrical Connection | Power Cord |
| For High-Static Pressure Applications | No |
| Supply Airflow @ 0.000 in SP | 2,920 cfm |
| Base Diameter | Not Applicable |
| Exhaust Airflow @ 0.250 in SP | 2,602 cfm |
| Maximum Inlet Air Temperature | 120 Degrees F |
| Sound Level | 19.7 sones @ 0.500 in SP and 5 ft, 19.9 sones @ 0.375 in SP and 5 ft, 20.0 sones @ 0.250 in SP and 5 ft, 21.0 sones @ 0.000 in SP and 5 ft, 21.0 sones @ 0.125 in SP and 5 ft, 21.0 sones @ 0.625 in SP and 5 ft, 23.0 sones @ 1.000 in SP, 24.0 sones @ 0.875 in SP and 5 ft, 25.0 sones @ 0.750 in SP and 5 ft |
| Housing Length | 35.3 in |
| Base Shape | Square |
| Supply Airflow @ 0.375 in SP | 2,376 cfm |
| Safety Features | Birdscreen |
| Brake Horsepower | 13/25 hp |
| Motor Horsepower | 0.75 HP |
| Cutout Size | 21-1/2 in L x 21-1/2 in W |
| Supply Airflow @ 0.250 in SP | 2,602 cfm |
| For Air Type | Clean Air |
| Mount Type | Roof Curb |
| Airflow @ 0.000 in SP | 2,920 cfm |
| High-Efficiency Motor | No |
| Assembly | Assembled |
| Frequency | 60 Hz |
| Overall Diameter | 35.3 in |
| Exhaust Airflow @ 0.125 in SP | 2,802 cfm |
| Drive Type | Direct Drive |
| Maximum Fan Speed | 1,750 rpm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
