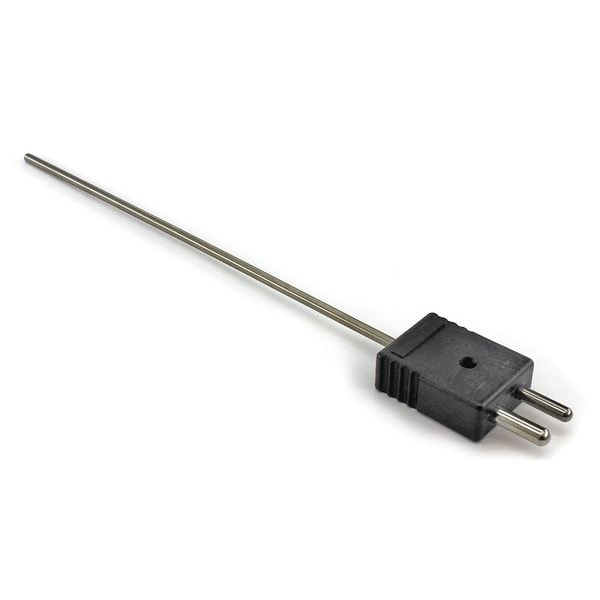

Sonda de termopar, Tipo J, 6 pulgadas de largo, calibre 22 AWG.
| Item | Thermocouple Probe |
|---|---|
| Grounded / Ungrounded | Ungrounded |
| Thermocouple Type | Type J |
| Temp. Limit (Deg. F) | 1,650 |
| Thermocouple Element | 22 AWG |
| Probe Length | 6 in |
| Material | 304 Stainless Steel |
| Plug or Connector Type | Standard Plug |
| Max. Pressure (PSI) | 1,000 |
| Error Accuracy (Deg. C) | +/-1.1 Below 293 Degrees |
| Sheath Size (In.) | 1/8 |
| Insulation | Magnesium Oxide |
| Standards | ANSI |
| Construction | Metal Insulated Cable |
| Error Accuracy (%) | +/-0.4 |
| Maximum Temperature °F | 2,193 deg F |
| Cable Material | Magnesium Oxide Insulation |
| Response Time | 1.1 sec |
| Tip Style | Rounded |
| Junction Type | Ungrounded |
| Fitting Type | Compression |
| For Application | Air, Gas, Liquid |
| Minimum Temperature °C | -210 deg C |
| Process Mounting | 1/4 in MNPT, 1/8 in, MNPT |
| Maximum Wire Gauge | 20 AWG |
| Probe Size | 1/8 in x 6 in |
| Temperature Range | -346 Degrees to 2,913 Degrees F/-210 Degrees to 1,200 Degrees C |
| For Solids | No |
| Probe Bend | Straight |
| Probe Sheath Material | 304 Stainless Steel |
| For Surfaces | No |
| Includes Thermowell | No |
| For Gases | Yes |
| Cable Length | 6 in |
| Head Material | Stainless Steel |
| For Liquids and Gels | Yes |
| Maximum Temperature °C | 1,200 deg C |
| Minimum Temperature °F | -346 deg F |
| Sensor Type | Thermocouple |
| Head Connection | 1/16 in MNPT, 1/2 in MNPT, 1/4 in MNPT, 1/8 in MNPT |
| For Air | Yes |
| Probe Tip Diameter | 1/8 in |
| Probe Diameter | 1/8 in |
| Accuracy | +/-0.4 Over 293 Degrees C, +/-1.1 Below 293 Degrees C |
| Connector Type | Standard Plug |
| Maximum Temperature °F | 2,193 deg F |
| Minimum Temperature °F | -346 deg F |
| Maximum Temperature °C | 1,200 deg C |
| Minimum Temperature °C | -210 deg C |
| Package Quantity | 1 |
