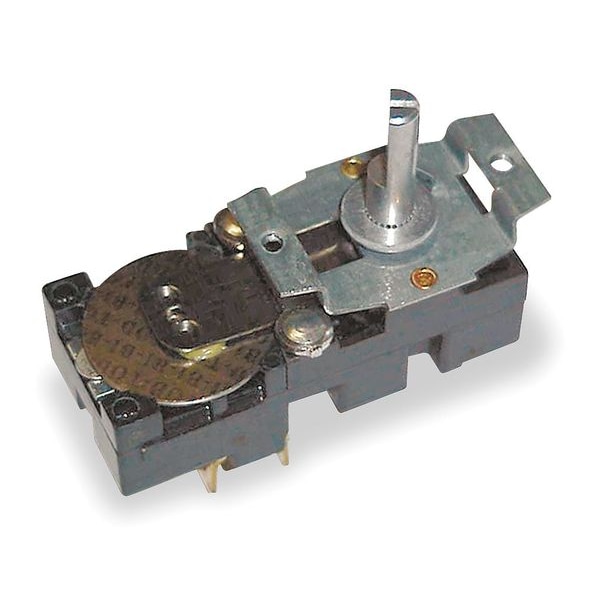

Thermostat, Unit, 120-277V, 60 Hz
| Item | Electric Wall & Ceiling Heater Thermostat |
|---|---|
| Heater Voltage | 120/277 V AC |
| Phase | 1 |
| Mounting Type | Unit |
| Switch Type | SPST |
| Hz | 60 |
| Material | Bimetal |
| Temp. Range | 45 to 95 Degrees F |
| For Use With | 2YU35-2YU43 |
| Amps AC | 25 |
| Includes | Mounting Hardware |
| Standards | UL Listed |
| Contact Rating | 22A @ 120 to 277V AC |
| Voltage | 120/277V AC |
| Thermostat Control Type | Mechanical Selector Dial |
| Overall Depth | 1-5/16 in |
| Housing Color | Black |
| Overall Height | 2-1/2 in |
| Thermostat Control Range | 45 Degrees to 95 Degrees F |
| Overall Dimensions - H x W x D | 2-1/2 in x 1-5/16 in x 1-5/16 in |
| Programming Capability | Not Programmable |
| Thermostat Control Amperage | 25 A |
| Thermostat Control Voltage | 120/277V AC |
| Max. Operating Temp. | 95 Degrees F |
| Overall Width | 1-5/16 in |
| Number of Poles | 1 |
| Maximum Operating Temperature | 95 Degrees F |
| Mounting | Unit |
| Type | Bi Metal, Unit Mount |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
