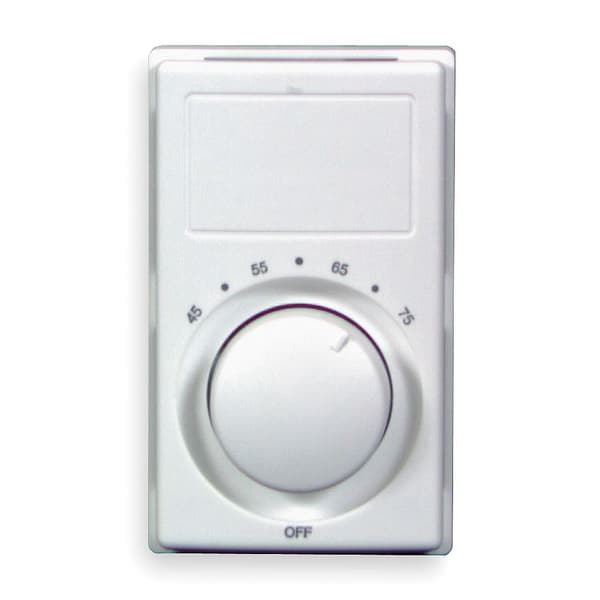

Thermostat, Wall, 120-277V, 60 Hz
| Promotion Restriction | Not eligible for promotion |
|---|---|
| Material | Bimetal |
| Voltage | 120/277V AC |
| Thermostat Control Range | 45 to 75 deg F |
| Switch Type | DPST |
| Length | 4-3/4 in |
| Item | Electric Wall & Ceiling Heater Thermostat |
| Includes | Mounting Hardware |
| Amps AC | 22 |
| Temp. Range | 45 to 75 deg F |
| Heater Voltage | 120/277 V AC |
| For Use With | 2YU35-2YU43 |
| Phase | 1 |
| Mounting Type | Wall |
| Hz | 60 |
| Standards | UL Listed |
| Mounting | Unit |
| Type | Bi Metal Wall Mount |
| Programming Capability | Not Programmable |
| Contact Rating | 22A @ 120 to 277V AC |
| Housing Color | White |
| Overall Width | 3 in |
| Overall Height | 4-1/2 in |
| Overall Depth | 4-3/4 in |
| Number of Poles | 2 |
| Thermostat Control Type | Mechanical Selector Dial |
| Thermostat Control Amperage | 22 A |
| Max. Operating Temp. | 75 Degrees F |
| Overall Dimensions - H x W x D | 4-1/2 in x 3 in x 4-3/4 in |
| Thermostat Control Voltage | 120/277V AC |
| Maximum Operating Temperature | 75 deg F |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
