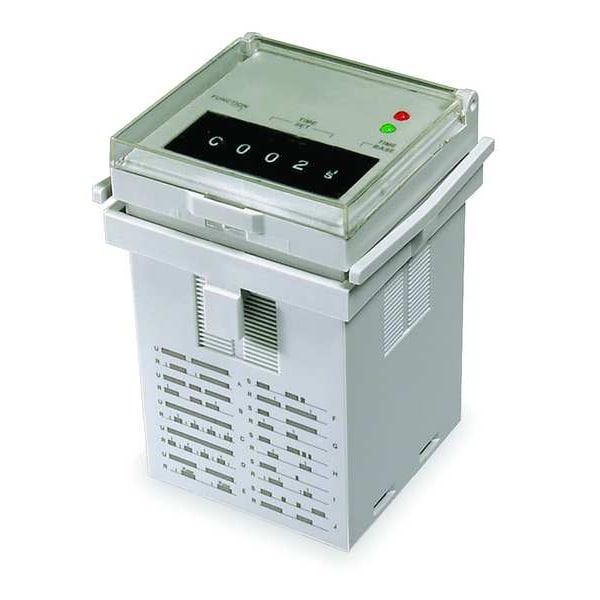

Retardo de tiempo del relé, 12 a 240 VCA/VCC, 12A, SPDT
| Item - Relay | Relay |
|---|---|
| Function - Timing Relay | Cycle One Shot, Interval Delay, Off Delay, On Delay, Repeat Cycle, Signal Interval/Off Delay, Signal Of Delay/On Delay |
| Coil Volts | 12 to 240V AC/DC |
| AC Contact Rating - Relay | 12A @ 240V |
| DC Contact Rating - Relay | 12 A @ 30 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Adjustment Method - Timer | Thumb Wheel |
| Mounting - Relay | Plug In |
| Contact Form - Relay | SPDT |
| Min. Time Setting - Timer | 0.1 sec |
| Max. Time Setting - Timer | 416 days 6 hr |
| Power Consumption - Relay | 2 W, 2.5 VA |
| Contact Material | Silver Alloy |
| Body Width - Relay | 1.42 in |
| Coil Rating | 2.5 VA |
| Body Height - Relay | 2.6 in |
| Item | Multi-Function Time Delay Relay |
| Operating Functions | 1, 2, 4, 5, 6, 8, 9 |
| Overall Height - Relay | 3 in |
| Hz | 50/60 |
| Number of Functions | 7 |
| Max. Time Setting | 9,990 hr |
| Contact Form | SPDT |
| Hz - Electrical | 50 Hz, 60 Hz |
| Electrical Connection | Socket |
| Pins | 8 |
| Base Type | Octal |
| Min. Time Setting | 0.1 sec |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Mounting | plug In |
| Body Depth - Relay | 1.73 in |
| Green Environmental Attribute | Programmable Timer Enables Reduced Energy Consumption |
| Socket Code | A |
| Contact Amp Rating (Resistive) | 12 A |
| Standards | E40944 |
| Status Indicator | None |
| Input Voltage | 12 to 240V AC/DC |
| Adjustment Method | Thumb Wheel |
| Contact Rating (DC) | 12 A @ 30 V |
| Maximum Time Setting | 9,990 hr |
| Mounting Style | Plug-In |
| Body Height | 2.6 in |
| Coil Voltage | 12 to 240V AC/DC |
| Reset Method | Reset |
| Minimum Time Setting | 0.1 sec |
| Relay Operation | Electromechanical |
| Frequency | 50/60 Hz |
| Flat Pin Width | Not Applicable |
| Power Consumption | 2 W, 2.5 VA |
| Current Rating | 12 A |
| Body Depth | 1.73 in |
| Contact Rating (AC) | 12 A @ 240 V |
| Number of Delay Functions | 7 |
| Number of Pins | 8 |
| Sealing | Sealed |
| Delay Function | Cycle One Shot, Interval Delay, Off Delay, On Delay, Repeat Cycle, Signal Interval/Off Delay, Signal Off Delay/On Delay |
| Overall Depth | 3 in |
| Base Shape | Octal |
| Body Width | 1.42 in |
| Compatible Grainger Part Number | 1EGP3, 1EGP5, 5X852 |
| Package Quantity | 1 |
