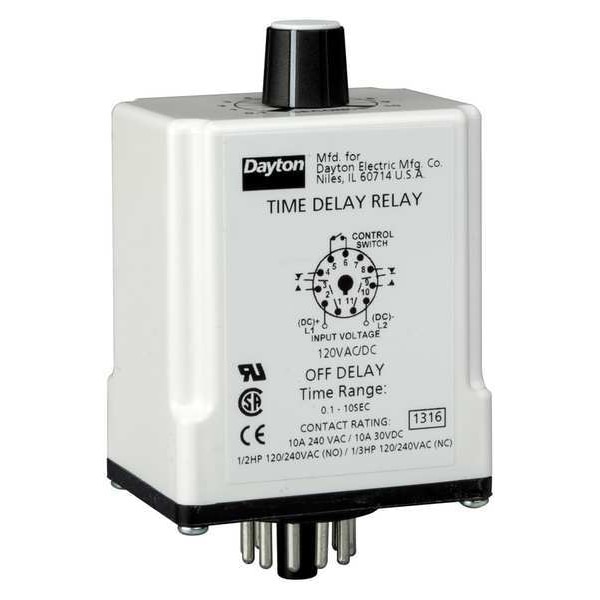

Retraso de tiempo Rlay, 120VCA/CD, 10A, DPDT, 3 segundos.
| Item - Relay | Single Function Timing Relay |
|---|---|
| Function - Timing Relay | Off Delay |
| Coil Volts | 120V AC/DC |
| AC Contact Rating - Relay | 10A @ 240V |
| DC Contact Rating - Relay | 10 A @ 30 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 11 |
| Adjustment Method - Timer | Potentiometer |
| Mounting - Relay | Plug In |
| Contact Form - Relay | DPDT |
| Min. Time Setting - Timer | 3 sec |
| Max. Time Setting - Timer | 5 min |
| Power Consumption - Relay | 2 W, 2.5 VA |
| Body Width - Relay | 2.4 in |
| Max. Time Setting | 5 min |
| Body Depth - Relay | 1.7 in |
| Status Indicator | None |
| Socket | 1EGP2, 1EGP4, 6X156 |
| Contact Material | Silver Nickel |
| Standards | CE Certified, CSA Certified, UL Listed, UL Socket |
| Contact Form | DPDT |
| Min. Time Setting | 3 sec |
| Contact Amp Rating (Resistive) | 10 A |
| Mounting | plug In |
| Base Type | Octal |
| Hz | 50/60 |

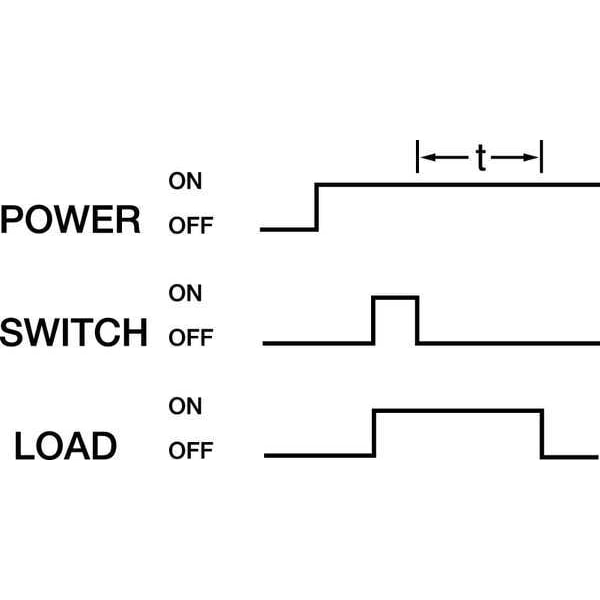

| Function | Off Delay |
| Hz - Electrical | 50 Hz, 60 Hz |
| Item | Single Function Time Delay Relay |
| Coil Rating | 2 VA |
| Overall Height - Relay | 3.1 in |
| Adjustment Method | Potentiometer |
| Electrical Connection | Socket |
| Operating Functions | 2 |
| Socket Code | B |
| Pins | 11 |
| Body Height - Relay | 2.9 in |
| Input Voltage | 120V AC/DC |
| Delay Function | Off Delay |
| Frequency | 50/60 Hz |
| Coil Voltage | 120V AC/DC |
| Mechanical Operating Durability | 10,000,000 |
| Current Rating | 10 A |
| Minimum Time Setting | 3 sec |
| Sealing | Enclosed |
| Contact Rating (AC) | 10 A @ 240 V |
| Body Height | 2.9 in |
| Maximum Operating Temperature | 122 deg F |
| Mounting Style | Plug-In |
| Body Width | 2.4 in |
| Minimum Operating Temperature | -18 deg F |
| Body Depth | 1.7 in |
| Operating Time Accuracy | +0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable)) |
| Electrical Operating Durability | 100,000 |
| Base Shape | Octal |
| Number of Pins | 11 |
| Number of Delay Functions | 1 |
| IP Rating | IP20 |
| Maximum Time Setting | 5 min |
| Flat Pin Width | Not Applicable |
| Contact Rating (DC) | 10 A @ 30 V |
| Reset Method | Time-Limit Reset |
| Overall Depth | 3.1 in |
| Power Consumption | 2 VA |
| Package Quantity | 1 |
