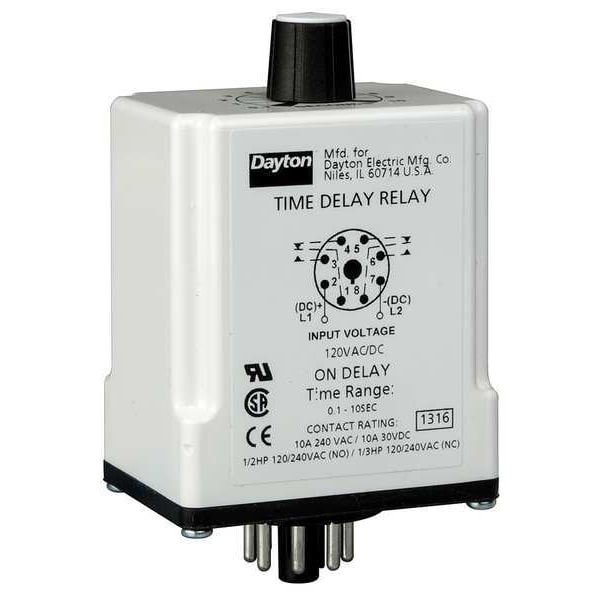

Retardo de Tiempo, 240VAC, 10A, DPDT, 0.01 seg.
| Item - Relay | Single Function Timing Relay |
|---|---|
| Function - Timing Relay | On Delay |
| Coil Volts | 240V AC |
| AC Contact Rating - Relay | 10A @ 240V |
| DC Contact Rating - Relay | 10 A @ 30 V |
| Base Type - Plug In Relay | Octal |
| Number of Pins - Relay | 8 |
| Adjustment Method - Timer | Potentiometer |
| Mounting - Relay | Plug In |
| Min. Time Setting - Timer | 0.01 sec |
| Contact Form - Relay | DPDT |
| Power Consumption - Relay | 2 VA |
| Max. Time Setting - Timer | 1 sec |
| Contact Material | Silver Nickel |
| Electrical Connection | Socket |
| Item | Single Function Time Delay Relay |
| Hz | 50/60 |
| Contact Form | DPDT |
| Hz - Electrical | 50 Hz, 60 Hz |
| Body Width - Relay | 2.4 in |
| Socket Code | A |
| Min. Time Setting | 0.01 sec |
| Body Height - Relay | 2.9 in |
| Coil Rating | 2 VA |
| Standards | CE Certified, CSA Certified, UL Listed, UL Socket |
| Body Depth - Relay | 1.7 in |
| Base Type | Octal |
| Max. Time Setting | 1 sec |
| Pins | 8 |
| Adjustment Method | Potentiometer |
| Socket | 1EGP3, 1EGP5, 5X852 |
| Mounting | plug In |
| Status Indicator | None |
| Overall Height - Relay | 3.1 in |
| Operating Functions | 1 |
| Function | On Delay |
| Contact Amp Rating (Resistive) | 10 A |
| Input Voltage | 240V AC |
| Maximum Time Setting | 1 sec |
| Number of Delay Functions | 1 |
| Mechanical Operating Durability | 10,000,000 |
| Base Shape | Octal |
| Contact Rating (DC) | 10 A @ 30 V |
| Coil Voltage | 240V AC |
| Overall Depth | 3.1 in |
| Electrical Operating Durability | 100,000 |
| Minimum Time Setting | 0.01 sec |
| Current Rating | 10 A |
| Contact Rating (AC) | 10 A @ 240 V |
| Power Consumption | 2 VA |
| Reset Method | Time-Limit Reset |
| Number of Pins | 8 |
| Body Height | 2.9 in |
| Body Width | 2.4 in |
| Minimum Operating Temperature | -18 deg F |
| IP Rating | IP20 |
| Delay Function | On Delay |
| Operating Time Accuracy | +0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable)) |
| Sealing | Enclosed |
| Frequency | 50/60 Hz |
| Mounting Style | Plug-In |
| Body Depth | 1.7 in |
| Maximum Operating Temperature | 122 deg F |
| Flat Pin Width | Not Applicable |
| Package Quantity | 1 |
