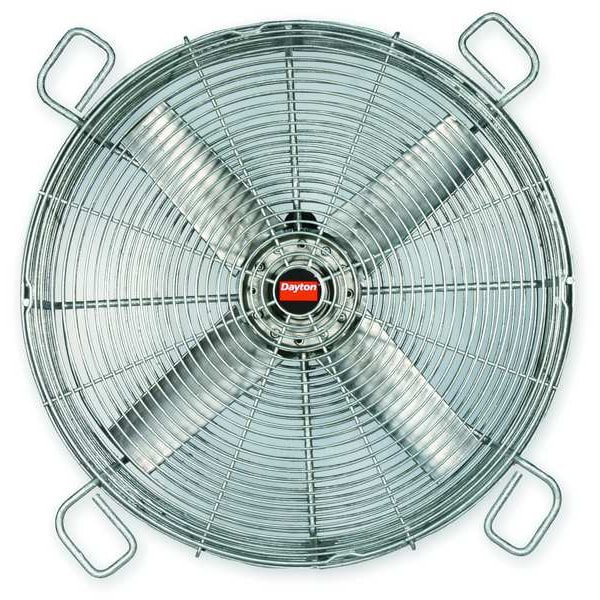

Transformer Fan, 115/230V, 16 in., 3100 cfm
| Item | Transformer Cooling Fan |
|---|---|
| Blade Diameter | 16 in |
| Motor HP | 0.25 |
| RPM | 1,140 |
| Voltage | 115/230V AC |
| Phase | 1 |
| Fan Item | Transformer Cooling Fan |
| Max. Depth | 13-5/16 in |
| Mounting Eye O.C. | 11-3/4 in |
| HP | 1/4 |
| Frame | 48Y Yoke Mount |
| Motor Insulation | Class B |
| Power Cord Length | 15 ft. |
| Fan Voltage | 115/230VAC |
| Motor Type | Permanent Split Capacitor |
| Height | 19 in |
| Width | 19 in |
| Air Flow (CFM) | 3,100 |
| Hz. | 60 |
| Motor Enclosure | Totally Enclosed Air-Over |
| Fan Mounting Type | Guard Mount |
| Fan Phase | 1 |
| Guards | Steel |
| Amps AC | 3.1/1.5 |
| Air Flow | 3,100 cfm |
| Blade Material | Cast Aluminum |
| Bearing Type | Ball |
| Includes | 15 ft Weatherproof Power Cord |
| Max. Ambient Temp. | 104 Degrees F |

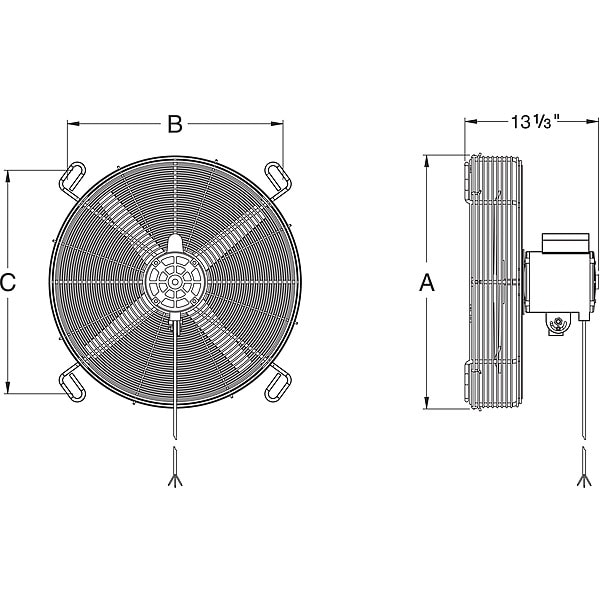

| Dimension B Min. | 11-3/4 in |
| Standards | Fans include weatherproof 15-ft UL Recognized power cord, |
| Dimension C Max. | 19 in |
| Dimension A | 19 in |
| Motor RPM | 1,140 |
| Number of Blades | 4 |
| Mount Type | Guard Mount |
| Dimension C Min. | 15-3/4 in |
| Blade Dia. | 16 in |
| Hz | 60 |
| Dimension B Max. | 15-3/4 in |
| Depth | 13-5/16 in |
| Fan Cord Length | 15 ft |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
