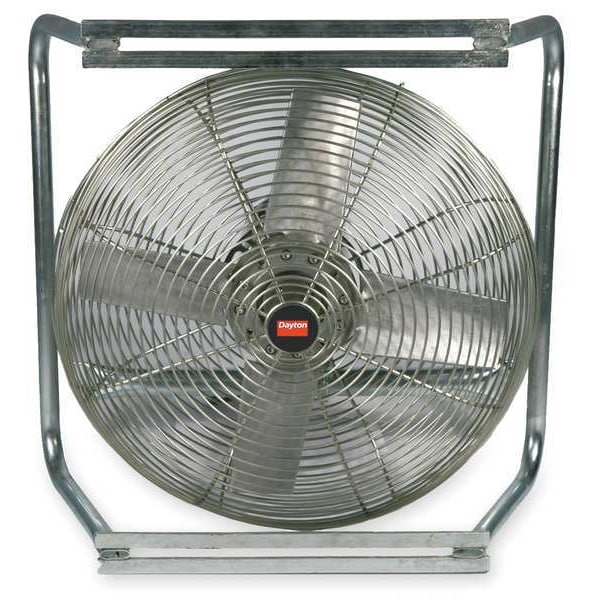

Transformer Fan, 115/230V, 20 in., 6599 cfm
| Item | Transformer Cooling Fan |
|---|---|
| Blade Diameter | 20 in |
| Motor HP | 0.5 |
| RPM | 1,725 |
| Voltage | 115/230V AC |
| Phase | 1 |
| Fan Voltage | 115/230VAC |
| Max. Ambient Temp. | 104 Degrees F |
| Power Cord Length | 15 ft. |
| Height | 24 in |
| Standards | Fans include weatherproof 15-ft UL Recognized power cord, |
| Number of Blades | 4 |
| Air Flow (CFM) | 6,599 |
| Fan Mounting Type | Tubular Mount |
| Motor RPM | 1,725 |
| HP | 1/2 |
| Hz. | 60 |
| Fan Phase | 1 |
| Amps AC | 4.1/2.1 |
| Includes | 15 ft Weatherproof Power Cord |
| Motor Type | Permanent Split Capacitor |
| Motor Insulation | Class B |
| Bearing Type | Ball |
| Motor Enclosure | Totally Enclosed Air-Over |
| Blade Material | Cast Aluminum |
| Blade Dia. | 20 in |

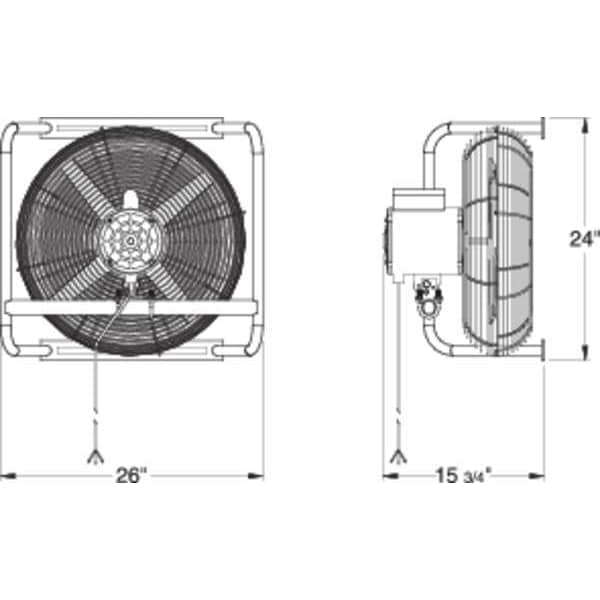

| Width | 26 in |
| Frame | 48Y Yoke Mount |
| Max. Depth | 15-3/4 in |
| Mount Type | Tubular Mount |
| Guards | Steel |
| Fan Item | Transformer Cooling Fan |
| Hz | 60 |
| Air Flow | 6,599 cfm |
| Fan Cord Length | 15 ft |
| Depth | 15-3/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
