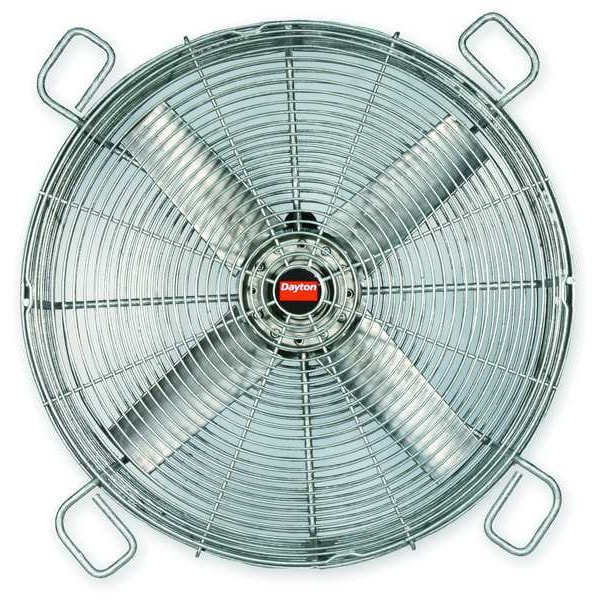

Transformer Fan, 230/460V, 20 in., 4600 cfm
| Item | Transformer Cooling Fan |
|---|---|
| Blade Diameter | 20 in |
| Motor HP | 0.25 |
| RPM | 1,140 |
| Voltage | 208-230/460V AC |
| Phase | 3 |
| Mounting Eye O.C. | 17-3/4 in |
| Fan Mounting Type | Guard Mount |
| Includes | 15 ft Weatherproof Power Cord |

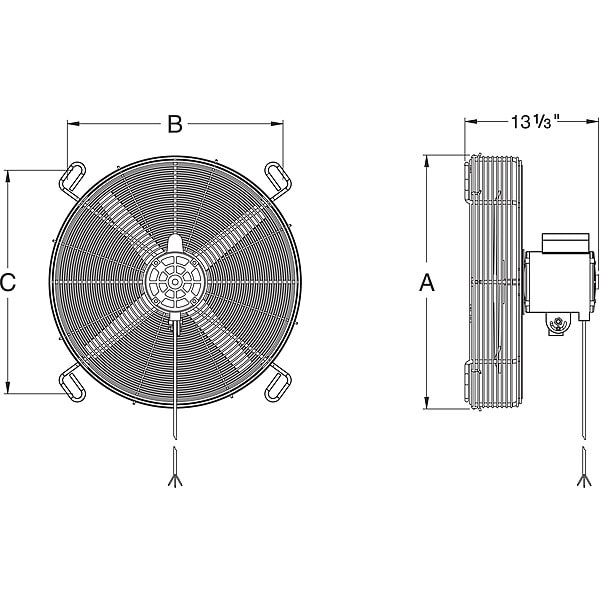

| Dimension C Min. | 18-1/2 in |
| Width | 23 in |
| Max. Ambient Temp. | 104 Degrees F |
| Dimension B Max. | 21-1/4 in |
| Mount Type | Guard Mount |
| Motor RPM | 1,140 |
| Motor Insulation | Class B |
| Fan Phase | 3 |
| Standards | Fans include weatherproof 15-ft UL Recognized power cord, |
| Blade Dia. | 20 in |
| Power Cord Length | 15 ft. |
| Frame | 48Y Yoke Mount |
| Dimension C Max. | 18-1/2 in |
| Number of Blades | 4 |
| Motor Type | 3 Phase |
| Dimension B Min. | 17-3/4 in |
| Height | 23 in |
| Fan Item | Transformer Cooling Fan |
| Max. Depth | 13-5/16 in |
| Guards | Steel |
| Blade Material | Cast Aluminum |
| HP | 1/4 |
| Motor Enclosure | Totally Enclosed Air-Over |
| Hz. | 60 |
| Dimension A | 23 in |
| Air Flow (CFM) | 4,600 |
| Bearing Type | Ball |
| Fan Voltage | 208-230/460VAC |
| Air Flow | 4,600 cfm |
| Hz | 60 |
| Amps AC | 1.3-1.4/0.7 |
| Fan Cord Length | 15 ft |
| Depth | 13-5/16 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
