Upblast Vent, 11-1/4 In, 115/208-230V
| Item - Roof Ventilators | Upblast Ventilator |
|---|---|
| Drive Package With Motor Included | Yes |
| Duty Rating - Roof Ventilators | Standard |
| Drive Type - Roof Ventilators | Belt Drive |
| Mounting Location - Roof Ventilators | Roof |
| Number of Speeds | 1 |
| Voltage - Roof Ventilators | 115V AC/208V AC/230V AC |
| Motor HP - Roof Ventilators | 0.25 HP |
| Base Size - Roof Ventilators | 19 in x 19 in |
| CFM @ 0.000-In. SP | 1413 |
| Base Width | 19 in |
| Assembled/Unassembled | Unassembled |
| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV82 |
| Mounting Location | Roof |
| Sones @ 0.500-In. SP @ 5 Ft. | 11.3 |
| Housing Material | Aluminum |
| Shaft Dia. Wheel End | 3/4 in |

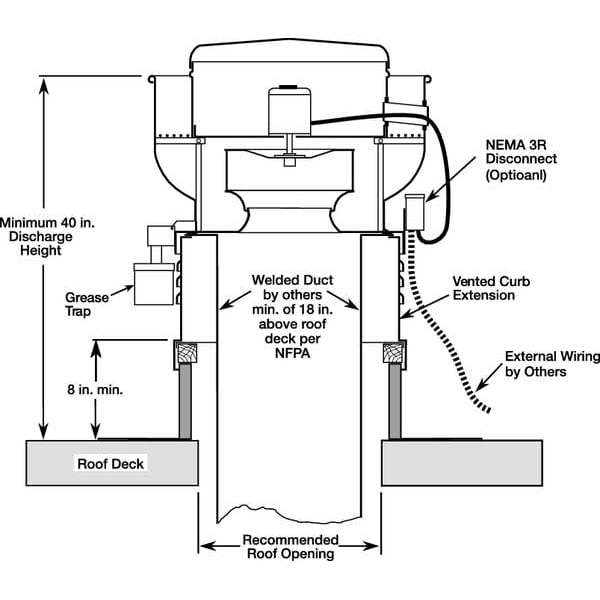

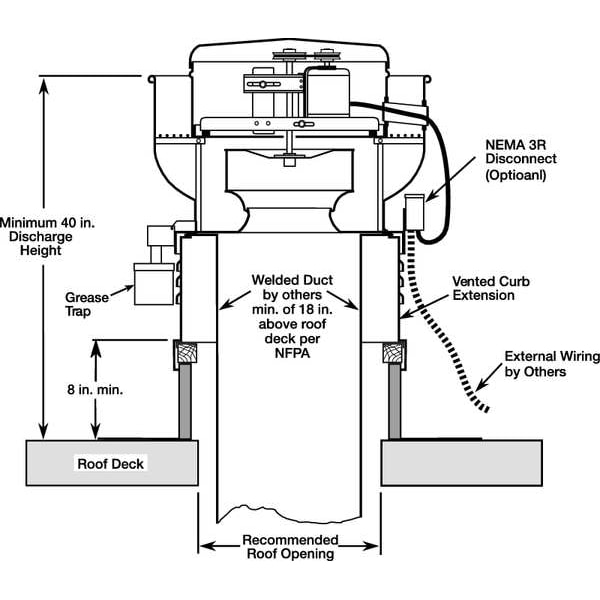

| Adj. UL 762 Kitchen Roof Curb Stock No. | 4HX61 |
| CFM @ 0.500-In. SP | 1,189 |
| Recommended Damper Stock No. | 4HX64 |

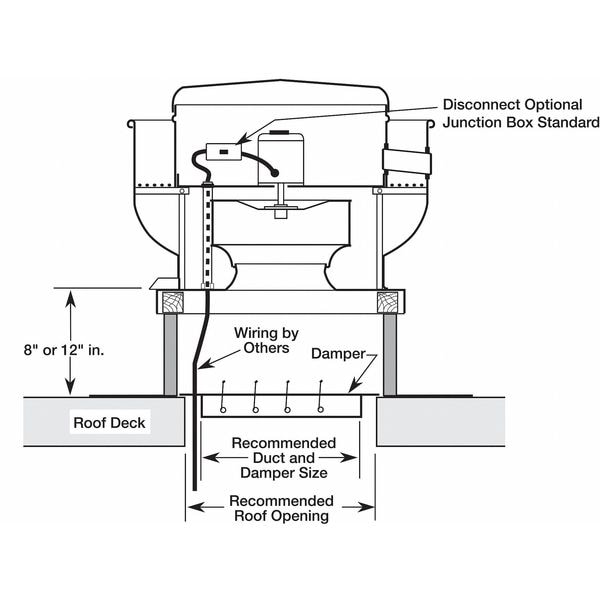

| Requires | Roof Curb for New Installation |
| Includes | Drive Package, NEMA 1 Junction Box |
| CFM @ 0.625-In. SP | 1,125 |
| Fixed UL 762 Kitchen Roof Curb Stock No. | 4HX54 |
| CFM @ 1.000-In. SP | 861 |
| Max. BHP | 0.26 |
| Motor Voltage | 115/208/230 |
| Base Square Size - Roof Ventilators | 19" x 19" |
| Sones @ 0.250-In. SP @ 5 Ft. | 12.0 |
| Phase | 1 |
| Wheel Dia. | 11-1/4 in |
| Base Length | 19 in |
| Base Height | 1.8 in |
| Speed Controllable | No |
| CFM @ 0.125-In. SP | 1,365 |

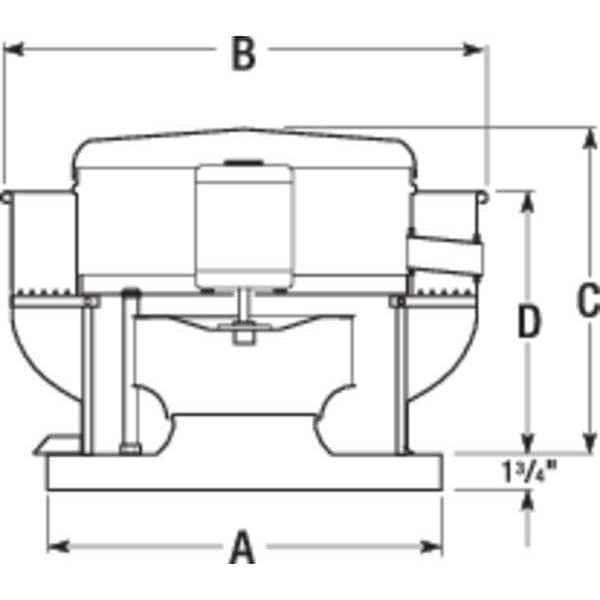

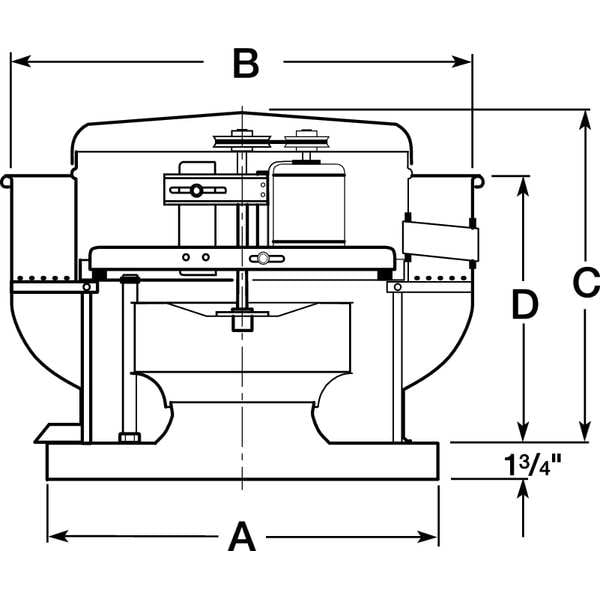

| Dimension D | 17-3/8 in |
| Hz | 60 |
| Item | Centrifugal Upblast Roof Exhaust Fan |
| CFM @ 0.375-In. SP | 1251 |
| Dimension B | 24-7/8 in |
| CFM @ 0.875-In. SP | 974 |
| Wheel Material | Aluminum |
| CFM @ 0.250-In. SP | 1,313 |
| Drive Type | Belt Drive |
| Max. Inlet Temp. | 300 deg F |
| Recommended Damper Size (In.) | 12 x 12 |
| Overall Dia. | 24-7/8 in |
| Sones @ 0.125-In. SP @ 5 Ft. | 12.3 |
| Dimension A | 19 in |
| Dimension C | 25-1/8 in |
| Drive Package Included | Yes |
| Recommended 12 In. Fixed Curb Item No. | 2RB75 |
| CFM @ 0.750-In. SP | 1,056 |
| Bearing Type | Sealed Pillow Block |
| Motor HP | 1/4 |
| Standards | AMCA Sound and Air, UL/cUL 762 |
| Overall Height | 26-7/8 in |
| RPM | 1,660 |
| Motor Location | Out of Airstream |
| Safety Features | Fully Rolled Windband |
| Maximum Fan Speed | 1,660 rpm |
| Mount Type | Roof Curb |
| Exhaust Airflow @ 0.500 in SP | 1,189 cfm |
| Maximum Inlet Air Temperature | 300 deg F |
| Maximum Static Pressure | 1 in wc |
| Exhaust Airflow @ 0.375 in SP | 1,251 cfm |
| Sound Level | 10.2 sones @ 0.750 in SP, 10.8 sones @ 0.625 in SP, 11.3 sones @ 0.500 in SP, 11.6 sones @ 0.375 in SP, 12.0 sones @ 0.250 in SP, 12.3 sones @ 0.125 in SP, 12.7 sones @ 0.000 in SP, 9.4 sones @ 1.000 in SP, 9.6 sones @ 0.875 in SP |
| Brake Horsepower | 13/50 hp |
| Wheel Diameter | 11-1/4 in |
| For High-Static Pressure Applications | No |
| Nameplate Voltage | 115/208-230V AC |
| Exhaust Airflow @ 0.125 in SP | 1,365 cfm |
| Features | Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design |
| Exhaust Airflow @ 0.250 in SP | 1,313 cfm |
| Assembly | Unassembled |
| Base Shape | Square |
| Wheel Type | Backward Inclined |
| Exhaust Airflow @ 0.000 in SP | 1,413 cfm |
| Airflow @ 0.000 in SP | 1,413 cfm |
| Current | 4.6/2.2 to 2.3 A |
| Frequency | 60 Hz |
| Includes Motor | Yes |
| Housing Length | 24.9 in |
| Includes Drive Package | Yes |
| Overall Diameter | 24-7/8 in |
| For Air Type | Kitchen Air |
| Motor Enclosure | Open Dripproof |
| High-Efficiency Motor | No |
| Motor Speed | 1,660 rpm |
| Damper Size | 12 in x 12 in |
| Base Diameter | Not Applicable |
| Application | Industrial and Commercial Buildings, Restaurants, Schools |
| Motor Horsepower | 0.25 HP |
| Propeller Shaft Diameter | 3/4 in |
| Housing Material Fabrication | Spun |
| Housing Width | 24.9 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
