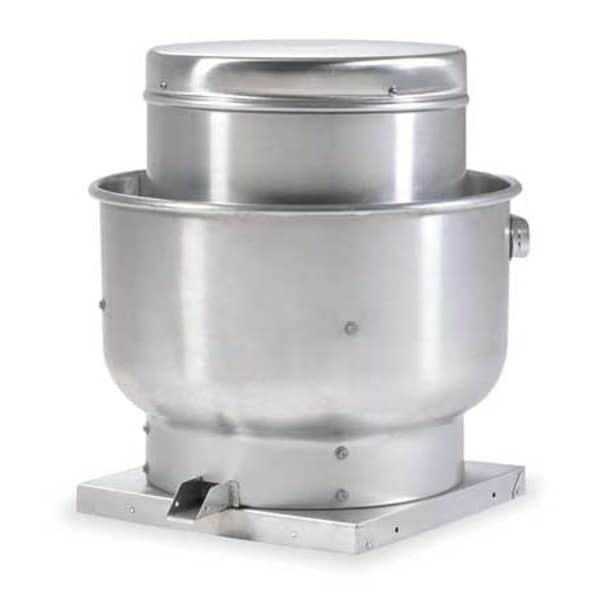

Upblast Vent, 21-1/4 In, 208-230/460V
| Item - Roof Ventilators | Upblast Ventilator |
|---|---|
| Drive Package With Motor Included | Yes |
| Duty Rating - Roof Ventilators | Standard |
| Drive Type - Roof Ventilators | Belt Drive |
| Mounting Location - Roof Ventilators | Roof |
| Number of Speeds | 1 |
| Voltage - Roof Ventilators | 208V AC/230V AC/460V AC |
| Motor HP - Roof Ventilators | 1.5 HP |
| Base Size - Roof Ventilators | 30 in x 30 in |
| Recommended 8 In. Fixed Curb Item No. | 4HX41 |
| Bearing Type | Regreasable Pillow Block |
| Item | Centrifugal Upblast Roof Exhaust Fan |
| Overall Dia. | 35-3/8 in |
| Dimension D | 21 in |
| Speed Controllable | No |
| Dimension A | 30 in |
| Max. Inlet Temp. | 300 deg F |
| CFM @ 0.750-In. SP | 4,312 |
| Drive Type | Belt Drive |
| Base Length | 30 in |
| CFM @ 1.000-In. SP | 4,055 |
| Standards | AMCA Sound and Air, UL/cUL 762 |
| Requires | Roof Curb for New Installation |
| RPM | 1,270 |
| Recommended Damper Stock No. | 4HX67 |
| Adj. 6 3/8"H Roof Curb Stock No. | 4c454 |
| CFM @ 1.500-In. SP | 3,433 |
| Base Square Size - Roof Ventilators | 30" x 30" |
| Housing Material | Aluminum |
| Motor Voltage | 208/230/460 |
| Mounting Location | Roof |
| Overall Height | 35-1/2 in |
| CFM @ 0.625-In. SP | 4,435 |
| Dimension C | 34-3/4 in |
| CFM @ 1.250-In. SP | 3,789 |
| Recommended 12 In. Fixed Curb Item No. | 2RB79 |
| Dimension B | 35-3/8 in |
| Drive Package Included | Yes |
| Recommended Damper Size (In.) | 23 x 23 |
| Hz | 60 |
| Wheel Material | Aluminum |
| Wheel Dia. | 21-1/4 in |
| Base Height | 1.8 in |
| Max. BHP | 1.56 |
| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV83 |
| Adj. UL 762 Kitchen Roof Curb Stock No. | 4HX62 |
| Includes | Drive Package, NEMA 1 Junction Box |
| Sones @ 0.500-In. SP @ 5 Ft. | 22 |
| Shaft Dia. Wheel End | 1 in |
| Base Width | 30 in |
| CFM @ 0.875-In. SP | 4,188 |
| CFM @ 0.500-In. SP | 4,558 |
| Phase | 3 |
| Fixed UL 762 Kitchen Roof Curb Stock No. | 4HX57 |
| CFM @ 1.75-In. SP | 2,944 |
| Motor HP | 1.5 |
| Max. Operating Amps | 4.8-4.8/2.4 |
| Assembled/Unassembled | Unassembled |
| Wheel Type | Backward Inclined |
| Features | Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design |
| Maximum Inlet Air Temperature | 300 deg F |
| Frequency | 60 Hz |
| For Air Type | Kitchen Air |
| Spark Resistant Construction Type | A |
| Maximum Static Pressure | 1.75 in wc |
| Motor Speed | 1,270 rpm |
| Motor Location | Out of Airstream |
| Wheel Diameter | 21-1/4 in |
| Base Diameter | Not Applicable |
| Electrical Connection | Power Cord |
| Housing Length | 35.4 in |
| Sound Level | 19.3 sones @ 1.500 in SP and 5 ft, 19.7 sones @ 1.250 in SP and 5 ft, 19.8 sones @ 1.750 in SP and 5 ft, 20.0 sones @ 0.875 in SP and 5 ft, 20.0 sones @ 1.000 in SP and 5 ft, 21.0 sones @ 0.625 in SP and 5 ft, 21.0 sones @ 0.750 in SP and 5 ft, 22.0 sones @ 0.500 in SP and 5 ft |
| Damper Size | 23 in x 23 in |
| High-Efficiency Motor | No |
| Brake Horsepower | 1 14/25 hp |
| Includes Drive Package | Yes |
| Base Shape | Square |
| Maximum Fan Speed | 1,270 rpm |
| Motor Enclosure | Open Dripproof |
| Assembly | Unassembled |
| Propeller Shaft Diameter | 1 in |
| Application | Industrial and Commercial Buildings, Restaurants, Schools |
| Exhaust Airflow @ 0.500 in SP | 4,558 cfm |
| Resistance Properties | Spark Resistant |
| Mount Type | Roof Curb |
| For High-Static Pressure Applications | Yes |
| Overall Diameter | 35-3/8 in |
| Current | 4.8 to 4.8/2.4 A |
| Motor Horsepower | 1.5 HP |
| Includes Motor | Yes |
| Housing Width | 35.4 in |
| Nameplate Voltage | 208-230/460V AC |
| Housing Material Fabrication | Spun |
| Safety Features | Fully Rolled Windband |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
