Upblast Vent, 30-1/2 In, 115/208-230V
| Item - Roof Ventilators | Upblast Ventilator |
|---|---|
| Drive Package With Motor Included | Yes |
| Duty Rating - Roof Ventilators | Standard |
| Drive Type - Roof Ventilators | Belt Drive |
| Mounting Location - Roof Ventilators | Roof |
| Number of Speeds | 1 |
| Voltage - Roof Ventilators | 115V AC/208V AC/230V AC |
| Motor HP - Roof Ventilators | 0.5 HP |
| Base Size - Roof Ventilators | 42 in x 42 in |
| CFM @ 0.000-In. SP | 6,835 |
| Overall Height | 41-3/4 in |
| Max. BHP | 0.52 |
| Sones @ 0.125-In. SP @ 5 Ft. | 8.2 |
| Adj. UL 762 Kitchen Roof Curb Stock No. | 4HX63 |
| Shaft Dia. Wheel End | 1 in |
| Recommended 12 In. Fixed Curb Item No. | 2RB81 |

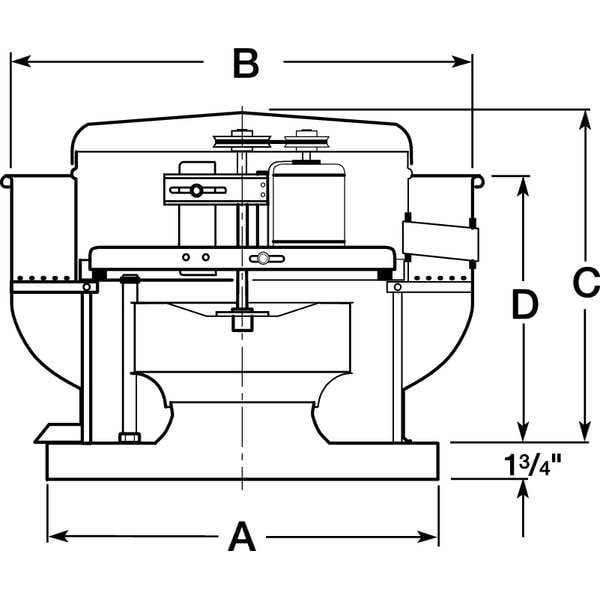

| Dimension D | 29-1/4 in |
| Recommended 8 In. Fixed Curb Item No. | 4HX43 |
| RPM | 420 |
| Fixed UL 762 Kitchen Roof Curb Stock No. | 4HX59 |
| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV85 |
| CFM @ 0.125-In. SP | 6,314 |
| Dimension A | 42 in |
| Requires | Roof Curb for New Installation |
| Dimension B | 50 in |
| Phase | 1 |
| Standards | AMCA Sound and Air, UL/cUL 762 |
| Speed Controllable | No |
| Base Width | 42 in |
| Dimension C | 40 in |
| Max. Inlet Temp. | 300 deg F |
| Sones @ 0.250-In. SP @ 5 Ft. | 7.5 |
| Drive Package Included | Yes |
| Base Height | 1.8 in |
| Motor HP | 0.5 |
| Assembled/Unassembled | Unassembled |
| CFM @ 0.250-In. SP | 5,660 |
| Housing Material | Aluminum |
| Recommended Damper Size (In.) | 35 x 35 |
| Base Square Size - Roof Ventilators | 42" x 42" |
| Item | Centrifugal Upblast Roof Exhaust Fan |
| CFM @ 0.375-In. SP | 4,820 |
| Includes | Drive Package, NEMA 1 Junction Box |
| Recommended Damper Stock No. | 4HX69 |
| Hz | 60 |
| Drive Type | Belt Drive |
| Base Length | 42 in |
| Motor Voltage | 115/208/230 |
| Wheel Dia. | 30-1/2 in |
| Overall Dia. | 50 in |
| Wheel Material | Aluminum |
| Mounting Location | Roof |
| Bearing Type | Regreasable Pillow Block |
| Wheel Type | Backward Inclined |
| For High-Static Pressure Applications | No |
| Frequency | 60 Hz |
| Includes Drive Package | Yes |
| Housing Material Fabrication | Spun |
| Electrical Connection | Power Cord |
| Motor Enclosure | Open Dripproof |
| Overall Diameter | 50 in |
| Current | 7.6/3.7 to 3.8 A |
| Spark Resistant Construction Type | A |
| Assembly | Unassembled |
| Safety Features | Fully Rolled Windband |
| Motor Speed | 420 RPM |
| Resistance Properties | Spark Resistant |
| Mount Type | Roof Curb |
| Application | Industrial and Commercial Buildings, Restaurants, Schools |
| Exhaust Airflow @ 0.250 in SP | 5,660 cfm |
| Motor Location | Out of Airstream |
| Features | Air Handling Quality Bearings Meet Minimum of L10-1,00,000 Hours, Leakproof, Nonoverloading Centrifugal Wheel Design |
| Maximum Fan Speed | 420 RPM |
| Housing Length | 50 in |
| Motor Horsepower | 0.5 HP |
| Nameplate Voltage | 115/208-230V AC |
| Propeller Shaft Diameter | 1 in |
| Housing Width | 50 in |
| Brake Horsepower | 13/25 hp |
| Maximum Inlet Air Temperature | 300 deg F |
| Exhaust Airflow @ 0.375 in SP | 4,820 cfm |
| Exhaust Airflow @ 0.000 in SP | 6,835 cfm |
| Base Diameter | Not Applicable |
| High-Efficiency Motor | No |
| Exhaust Airflow @ 0.125 in SP | 6,314 cfm |
| Maximum Static Pressure | 0.375 in wc |
| Sound Level | 6.9 sones @ 0.375 in SP and 5 ft, 7.5 sones @ 0.250 in SP and 5 ft, 8.2 sones @ 0.125 in SP and 5 ft, 9.0 sones @ 0.000 in SP and 5 ft |
| Damper Size | 35 in x 35 in |
| Includes Motor | Yes |
| Wheel Diameter | 30-1/2 in |
| Base Shape | Square |
| For Air Type | Kitchen Air |
| Airflow @ 0.000 in SP | 6,835 cfm |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
