Upblast Vent, 30-1/2 In, 115/208-230V
| Item - Roof Ventilators | Upblast Ventilator |
|---|---|
| Drive Package With Motor Included | Yes |
| Duty Rating - Roof Ventilators | Standard |
| Drive Type - Roof Ventilators | Belt Drive |
| Mounting Location - Roof Ventilators | Roof |
| Number of Speeds | 1 |
| Voltage - Roof Ventilators | 115V AC/208V AC/230V AC |
| Motor HP - Roof Ventilators | 1 HP |
| Base Size - Roof Ventilators | 40 in x 40 in |
| CFM @ 0.000-In. SP | 8625 |
| Hz | 60 |

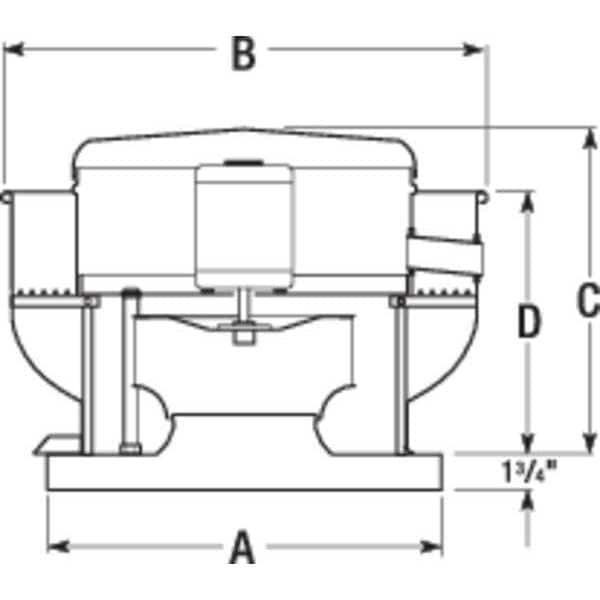

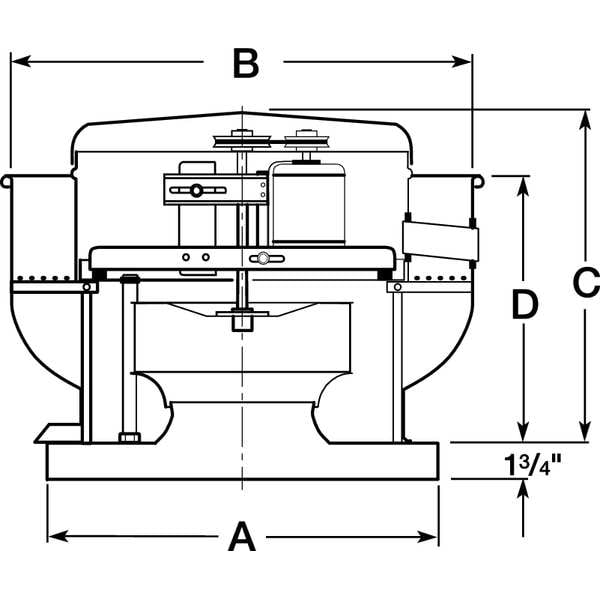

| Dimension A | 40 in |
| Housing Material | Aluminum |
| Max. BHP | 1.05 |
| Max. Inlet Temp. | 300 deg F |
| Base Width | 40 in |
| Motor Voltage | 115/208/230 |
| Dimension C | 40 in |
| Dimension D | 29-1/4 in |
| Requires | Roof Curb for New Installation |
| CFM @ 0.625-In. SP | 5,879 |
| Standards | AMCA Sound and Air, UL/cUL 762 |
| Bearing Type | Regreasable Pillow Block |
| Mounting Location | Roof |
| Phase | 1 |
| Adj. 12 3/8"H Roof Curb Stock No. | 2ZV84 |
| Assembled/Unassembled | Unassembled |
| Wheel Dia. | 30-1/2 in |
| Wheel Material | Aluminum |
| CFM @ 0.250-In. SP | 7,772 |
| Recommended Damper Size (In.) | 27 x 27 |
| Includes | Drive Package, NEMA 1 Junction Box |
| Dimension B | 50 in |
| Base Height | 1.8 in |
| Item | Centrifugal Upblast Roof Exhaust Fan |
| Recommended 12 In. Fixed Curb Item No. | 3AZJ2 |
| Base Square Size - Roof Ventilators | 40" x 40" |
| Drive Type | Belt Drive |
| RPM | 530 |
| Sones @ 0.500-In. SP @ 5 Ft. | 11.2 |
| Motor HP | 1 |
| Sones @ 0.125-In. SP @ 5 Ft. | 12.7 |
| Recommended Damper Stock No. | 4HX68 |
| Shaft Dia. Wheel End | 1 in |
| CFM @ 0.125-In. SP | 8,231 |
| Sones @ 0.250-In. SP @ 5 Ft. | 12.2 |
| Speed Controllable | No |
| Overall Dia. | 50 in |
| Drive Package Included | Yes |
| CFM @ 0.375-In. SP | 7245 |
| Base Length | 40 in |
| CFM @ 0.500-In. SP | 6,636 |
| Overall Height | 41-3/4 in |
| Airflow @ 0.000 in SP | 8,625 cfm |
| Brake Horsepower | 1.05 HP |
| For High-Static Pressure Applications | No |
| Exhaust Airflow @ 0.125 in SP | 8,231 cfm |
| Exhaust Airflow @ 0.375 in SP | 7,245 cfm |
| Application | Industrial and Commercial Buildings, Restaurants, Schools |
| Damper Size | 27 in x 27 in |
| Base Shape | Square |
| Wheel Type | Backward Inclined |
| Housing Material Fabrication | Spun |
| Safety Features | Fully Rolled Windband |
| Includes Motor | Yes |
| High-Efficiency Motor | No |
| Overall Diameter | 50 in |
| Motor Enclosure | Open Dripproof |
| Includes Drive Package | Yes |
| Housing Length | 28.9 in |
| Assembly | Unassembled |
| Motor Horsepower | 1 HP |
| Nameplate Voltage | 115/230V AC |
| Maximum Static Pressure | 0.625 in wc |
| Base Diameter | Not Applicable |
| Current | 8.8/4.4 A |
| Exhaust Airflow @ 0.000 in SP | 8,625 cfm |
| Mount Type | Roof Curb |
| Wheel Diameter | 30-1/2 in |
| Sound Level | 10.2 sones @ 0.625 in SP, 11.2 sones @ 0.500 in SP, 11.7 sones @ 0.375 in SP, 12.2 sones @ 0.250 in SP, 12.7 sones @ 0.125 in SP, 13.3 sones @ 0.000 in SP |
| Motor Speed | 530 RPM |
| Exhaust Airflow @ 0.250 in SP | 7,772 cfm |
| Motor Location | Out of Airstream |
| Exhaust Airflow @ 0.500 in SP | 6,636 cfm |
| Maximum Fan Speed | 530 RPM |
| Housing Width | 28.9 in |
| Features | Air Handling Quality Bearings Meet Minimum of L10-100,000 Hours, Nonoverloading Centrifugal Wheel Design |
| Maximum Inlet Air Temperature | 300 deg F |
| Frequency | 60 Hz |
| For Air Type | Kitchen Air |
| Propeller Shaft Diameter | 1 in |
| Country of Origin (subject to change) | Multiple |
| Package Quantity | 1 |
