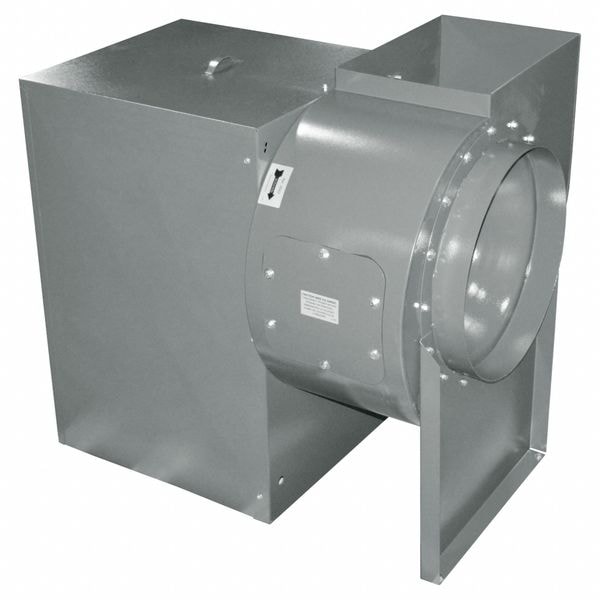

Utility Exhaust Blower, 5HP, 4600 cfm
| Item | Utility Exhaust Blower |
|---|---|
| Shaft Diameter | 1 in |
| Drive Type | Belt Drive |
| Wheel Type | Backward-Inclined |
| For Ventilation Type | Exhaust |
| Rotation | CW |
| Housing Material | Steel |
| Wheel Diameter | 15 in |
| Wheel Material | Aluminum |
| Corrosion Resistant | No |
| Maximum Motor Horsepower | 5 HP |
| Flange Size | Not Applicable |
| Hazardous Location Specification | Not Applicable |
| Maximum Static Pressure | 3 in wc |
| Overall Height | 31-7/8 in |
| Overall Width | 36-1/4 in |
| Speed Controllable | No |
| Standards | AMCA Air Performance Certified, UL 705 |
| Outlet Height | 15-3/4 in |
| Includes Drive Package | No |
| Wheel Width | 5-1/2 in |
| Sound Level | 80 dbA @ 5 ft |
| For High-Static Pressure Applications | Yes |
| Outlet Width | 12-3/4 in |
| Assembly | Unassembled |
| Number of Discharge Positions | 8 |
| Minimum Airflow | 1,300 cfm |
| Spark Resistant Construction Type | B |
| Flange Type | Non-Flanged |
| Number of Inlets | 1 |
| Inlet Diameter | 15-7/8 in |
| Maximum Airflow | 4,600 cfm |
| Overall Depth | 27-1/4 in |
| Chemical Resistant | No |
| Outlet Shape | Rectangular |
| Minimum Motor Horsepower | 0.75 HP |
| Minimum Fan Speed | 920 RPM |
| Hazardous Location Application | No |
| Maximum Inlet Air Temperature | 300 deg F |
| Maximum Fan Speed | 2,600 rpm |
| Includes Motor | No |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
