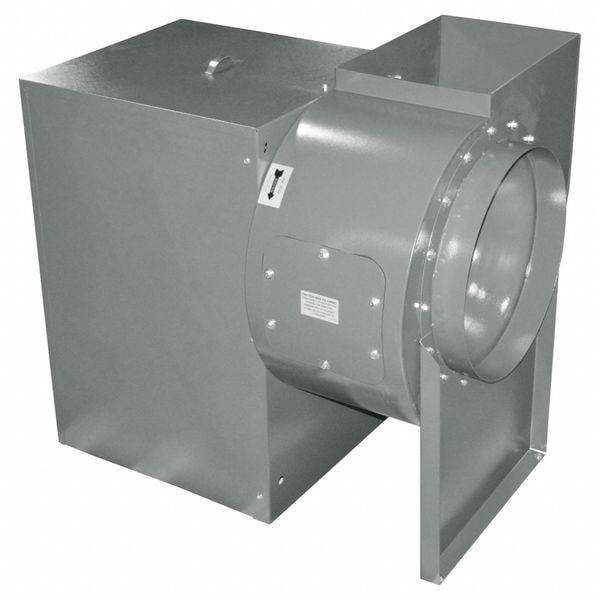

Utility Exhaust Blower, 7 1/2HP, 5500 cfm
| Item | Utility Exhaust Blower |
|---|---|
| Wheel Material | Aluminum |
| Shaft Diameter | 1-3/16 in |
| Housing Material | Steel |
| Rotation | CW |
| Drive Type | Belt Drive |
| Wheel Diameter | 16-1/2 in |
| Wheel Type | Backward-Inclined |
| For Ventilation Type | Exhaust |
| Flange Type | Non-Flanged |
| Outlet Width | 13-1/4 in |
| Outlet Height | 17-1/2 in |
| Hazardous Location Application | No |
| Maximum Fan Speed | 2,350 rpm |
| Sound Level | 83 dbA @ 5 ft |
| Overall Width | 36-5/8 in |
| Speed Controllable | No |
| Minimum Fan Speed | 840 RPM |
| Hazardous Location Specification | Not Applicable |
| Number of Inlets | 1 |
| Flange Size | Not Applicable |
| Includes Drive Package | No |
| Standards | AMCA Air Performance Certified, UL 705 |
| Spark Resistant Construction Type | B |
| Corrosion Resistant | No |
| Overall Height | 34-5/8 in |
| Overall Depth | 29-7/8 in |
| Maximum Static Pressure | 3 in wc |
| Chemical Resistant | No |
| Minimum Airflow | 1,600 cfm |
| Inlet Diameter | 17-3/8 in |
| Maximum Airflow | 5,500 cfm |
| Number of Discharge Positions | 8 |
| Assembly | Unassembled |
| Minimum Motor Horsepower | 0.75 HP |
| Maximum Inlet Air Temperature | 300 deg F |
| For High-Static Pressure Applications | Yes |
| Wheel Width | 6-1/2 in |
| Maximum Motor Horsepower | 7.5 HP |
| Outlet Shape | Rectangular |
| Includes Motor | No |
| Country of Origin (subject to change) | Canada |
| Package Quantity | 1 |
