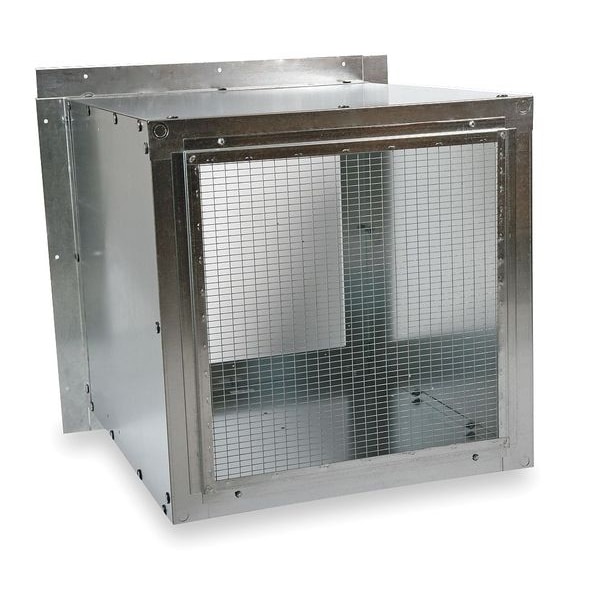

Wall Housing, Galv Steel, For 48 In Fan
| Item | Wall Housing |
|---|---|
| For Fan Dia. (In.) | 48 |
| Construction | 16 Gauge (Galvanized Steel) |
| Application | For Use With Exhaust/Supply Fans |
| Material | Steel |
| Dimension C (In.) | 2 |
| Gauge | 16 |
| Dimension A (In.) | 54-1/4 |
| Height (In.) | 54-1/4 |
| Width (In.) | 54-1/4 |
| Depth (In.) | 44 |
| Dimension B (In.) | 44 |
| Includes | (2) Guard, (4) Mounting Angle, (4) Side Panel |
| Overall Width | 54-1/4 in |
| For Cut-Out Width | 55-5/8 in |
| Finish | Galvanized |
| Overall Height | 54-1/4 in |
| Overall Depth | 44 in |
| For Blade Diameter | 48 in |
| Thickness | 16 ga |
| For Cut-Out Height | 55-5/8 in |
| Standards | OSHA-compliant screen completely protects motor drive side of fan |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
