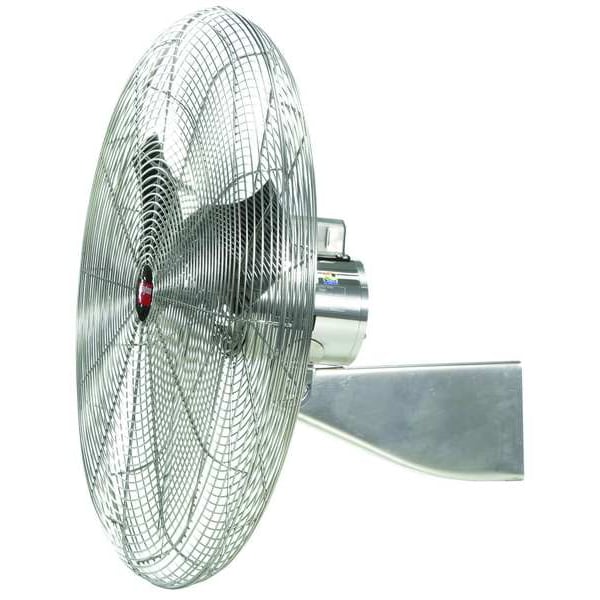

Washdown Air Circulator, Wall Mount, 20 in Blade Dia, 115V, 2,670 cfm, Non-Oscillating
| Blade Diameter | 20 in |
|---|---|
| Oscillation | Non-Oscillating |
| Number of Speeds | 2 |
| Voltage | 115V |
| Phase | 1 |
| Motor HP | 1/15 hp |
| Air Flow | 2,670 cfm |
| Drive Type | Direct Drive |
| Blade Material | 304 Stainless Steel |
| Sound Level | 68 dBA |
| Item | Air Circulator |
| Motor Type | Permanent Split Capacitor |
| Bearing Type | Ball |
| Includes | Stainless Steel Wall Bracket, Mounting Bolts and Secondary Safety Support Cable |
| Max. Depth | 10-1/2 in |
| Number of Blades | 3 |
| Housing Material | Stainless steel |
| Shaft Dia. | 1/2 in |
| Fan Style | Washdown |
| Fan Accessory Style | Washdown |
| Standards | Motors comply with cULus/OSHA/BISSC/USDA/NSF |
| Watts | 120 W |
| Width | 22-1/2 in |
| Motor RPM | 1,600 RPM |
| Guard Material | 304 Stainless Steel |
| Environmental Applications | Industrial |
| Hz | 60 |
| Assembled | Yes |
| CFM High | 2,670 |
| CFM/Watt | 22.2 |
| Air Velocity @ 10 Ft. | 450 fpm |
| Max. Ambient Temp. | 105 deg F |
| Motor Enclosure | Totally Enclosed |
| Motor Insulation | Class B |
| Wire Guard Finish | Electro Polish |
| Mobile/Stationary | Stationary |
| Fan Mounting Location | Wall |
| Air Velocity @ 40 Ft. | 30 fpm |
| Height | 22-1/2 in |
| Application | Spot Cooling and People Cooling; Air Circulation |
| Thermal Protection | Automatic |
| Air Velocity @ 20 Ft. | 225 fpm |
| Outside Dia. | 22-1/2 in |
| Fan Housing Material | Steel |
| RPM | 1600 |
| Depth | 10-1/2 in |
| Assembly Required | No |
| Amps | 1.08 |
| Wheeled Base | Stationary |
| Material | Stainless steel |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
