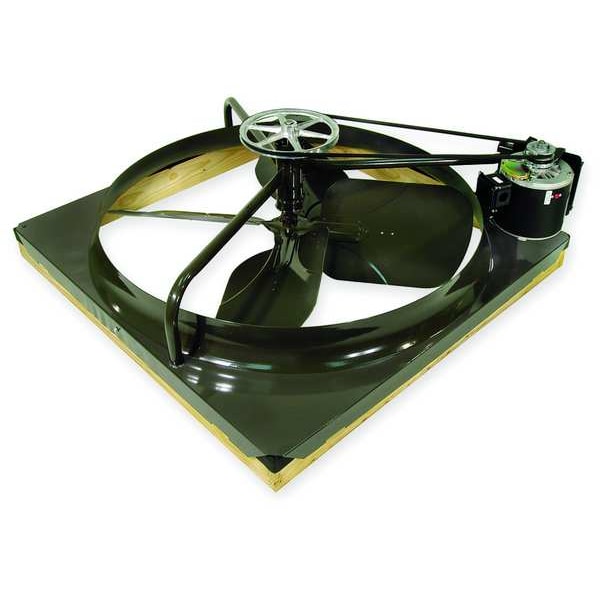

Whole House Fan, 30 In, 115 Volt
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Belt Drive |
| Blade Dia. | 30 in |
| Fan Voltage | 115 V AC |
| Coverage (Square-Ft.) | 1,200 |
| CFM High | 7,600 |
| Housing Finish | Powder Coated |
| Number of Blades | 4 |
| Requires | Ceiling Shutter |
| HP | 1/3 hp |
| Agency Compliance | UL and c-UL |
| Includes | 1 in x 4 in Wooden Plenum Box, 12 Hour Timer, Rubber Mounting Gasket |
| Item | Whole House Fan |
| Propeller Material | Steel |
| Phase | 1 |
| Watts | 550/367 |
| Power Cord Length (Ft.) | Cableado |
| CFM Low | 5,100 |
| Height (In.) | 15 |
| Mounting Location | Ceiling |
| Housing Material | Steel |
| Ceiling Shutter | 4C225 o 3C511 |
| Fan RPM | 455/305 |
| Motor Type | Split-Phase |
| Speed | 2 |
| Hz | 60 |
| Drive Package Included | Yes |
| Width (In.) | 34 |
| Amps | 6.7/4.7 |
| Depth (In.) | 34 |
| Bearing Type | Ball Bearing |
| For Cut-Out Width | 34 in |
| Frequency | 60 Hz |
| Includes Motor | Yes |
| Standards | UL Listed |
| Free Area | 10 sq ft |
| Blade Finish | Powder Coated |
| Motor Enclosure | Open Dripproof |
| Frame Finish | Powder Coated |
| Profile Height Family | High |
| Electrical Connection | Hardwired |
| Exhaust Airflow @ 0.100 in SP | 6,380 cfm |
| For Cut-Out Height | 34 in |
| Vent Design | Ductless |
| Blade Material | Steel |
| Exhaust Airflow @ 0.000 in SP | 7,600 cfm |
| Mounting Orientation | Horizontal |
| Duct Width | Not Applicable |
| Includes Grill | No |
| Control Type | Switch |
| Manufacturer Warranty Length | 1 yr |
| Overall Height | 34 in |
| Maximum Noise Level | 14 sones |
| Maximum Coverage Area | 1,200 sq ft |
| Duct Diameter | Not Applicable |
| Fan Style | Whole-House |
| Nameplate Voltage | 115V AC |
| Speed Controllable | Yes |
| Duct Shape | Not Applicable |
| Blade Diameter | 30 in |
| Noise Level @ 0.000 in SP @ 5 ft | 14 sones |
| Number of Fans | 1 |
| Noise Level @ 0.100 in SP @ 5 ft | 14 sones |
| Includes Dehumidistat | No |
| Motor Horsepower | 0.3333 HP |
| Ventilation Type | Exhaust |
| Number of Speeds | 2 |
| Frame Material | Steel |
| Number of Shutters | 0 |
| Full Load Current | 6.7 A |
| Assembled | Assembled |
| Overall Width | 34 in |
| Drive Type | Belt Drive |
| Duct Height | Not Applicable |
| Overall Depth | 15 in |
| Motor Speed | 1,750 rpm |
| Wattage | 550 W |
| Maximum Airflow | 7,600 cfm |
| Grille Material | Not Applicable |
| Quiet Design | No |
| High-Efficiency Motor | No |
| Frame Thickness | 1 in |
| Coverage Area | 1,200 sq ft |
| Power Cord Length | Cableado |
| For High-Static Pressure Applications | No |
| Rough Opening Type | Square |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
