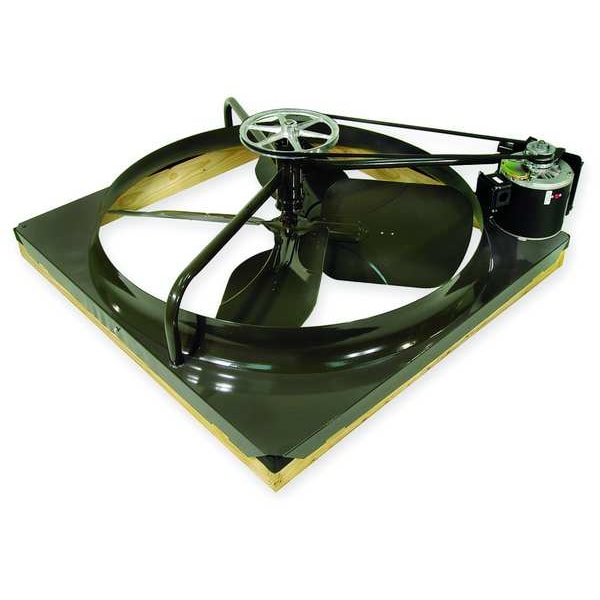

Whole House Fan, 42 In, 115 Volt
| Exhaust/Supply Fan Item | Exhaust Fan |
|---|---|
| Type | Belt Drive |
| Blade Dia. | 42 in |
| Fan Voltage | 115 V AC |
| Coverage (Square-Ft.) | 3,200 |
| CFM High | 12,600 |
| Housing Material | Steel |
| Width (In.) | 46 |
| Height (In.) | 15 |
| Propeller Material | Steel |
| Power Cord Length (Ft.) | Predeterminado |
| Speed | 2 |
| Phase | 1 |
| Mounting Location | Ceiling |
| Bearing Type | Ball Bearing |
| HP | 1/2 hp |
| CFM Low | 8,400 |
| Depth (In.) | 46 |
| Motor Type | Split-Phase |
| Item | Whole House Fan |
| Number of Blades | 4 |
| Ceiling Shutter | 3C242 |
| Includes | 1 in x 6 in Wooden Plenum and 3/4 in x 7/16 in Adhesive-backed Sponge Rubber Mounting Strip, 12 Hour Timer |
| Amps | 8.2/4.4 |
| Requires | Ceiling Shutter |
| Agency Compliance | UL, cUL |
| Housing Finish | Powder Coated |
| Fan RPM | 410/270 |
| Hz | 60 |
| Drive Package Included | No |
| Watts | 661/350 |
| Number of Fans | 1 |
| Duct Width | Not Applicable |
| For Cut-Out Width | 46 in |
| Frame Finish | Powder Coated |
| Overall Width | 46 in |
| Blade Material | Steel |
| Exhaust Airflow @ 0.100 in SP | 10,840 cfm |
| Overall Height | 46 in |
| Number of Speeds | 2 |
| Duct Height | Not Applicable |
| Includes Dehumidistat | No |
| Fan Style | Whole-House |
| For Cut-Out Height | 46 in |
| Wattage | 661 W |
| Duct Diameter | Not Applicable |
| Manufacturer Warranty Length | 1 yr |
| Vent Design | Ductless |
| Maximum Coverage Area | 3,200 sq ft |
| Profile Height Family | High |
| Electrical Connection | Hardwired |
| Free Area | 18 sq ft |
| Motor Horsepower | 0.5 HP |
| Blade Diameter | 42 in |
| Drive Type | Belt Drive |
| Standards | UL Listed |
| Control Type | Switch |
| Frame Material | Steel |
| Full Load Current | 8.2 A |
| Includes Grill | No |
| Duct Shape | Not Applicable |
| Motor Enclosure | Open Dripproof |
| Exhaust Airflow @ 0.000 in SP | 12,600 cfm |
| Maximum Airflow | 12,600 cfm |
| Number of Shutters | 0 |
| Includes Motor | Yes |
| Overall Depth | 15 in |
| Noise Level @ 0.000 in SP @ 5 ft | 15 sones |
| Speed Controllable | Yes |
| Motor Speed | 410 RPM |
| Mounting Orientation | Horizontal |
| Frequency | 60 Hz |
| Assembled | Assembled |
| Noise Level @ 0.100 in SP @ 5 ft | 15 sones |
| Maximum Noise Level | 15 sones |
| Ventilation Type | Exhaust |
| Nameplate Voltage | 115V AC |
| Blade Finish | Powder Coated |
| For High-Static Pressure Applications | No |
| Frame Thickness | 1 in |
| Coverage Area | 3,200 sq ft |
| Power Cord Length | Predeterminado |
| Rough Opening Type | Square |
| High-Efficiency Motor | No |
| Quiet Design | No |
| Grille Material | Not Applicable |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
