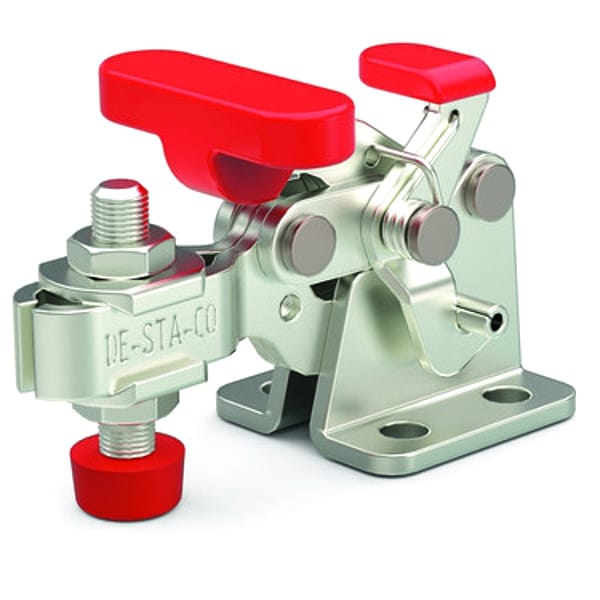

BDB1340A W-ACU-RITE 203 2-X DRO
| Overall Length | 2.21 in |
|---|---|
| Features | Compact Design For Confined Spaces, Stainless Steel Design, U-Bar Clamping Arm with Stainless Steel Hex Head Spindle |
| Includes | Flanged Washers, Spindle Assembly |
| Overall Height | 1.4300" |
| Item | Hold-Down Clamp |
| Application | Assembly, Checking Fixtures, Closures, Food Processing, Machining, Wood Working |
| Clamping Orientation | Horizonal |
| Base Length | 1.035 in |
| Handle Movement Angle | 170 deg |
| Bar Length | 1.19 in |
| Base Material | Stainless Steel |
| Bar Type | U-Bar |
| Base Type | Flange |
| Bar Width | 0.31 in |
| Base Width | 1.02 in |
| Distance Between Mount Holes | 0.53 in |
| Bar Opening Angle | 90 deg |
| Height Under Bar | 0.48 in |
| Holding Capacity | 200 lb |
| Handle Orientation | Horizontal |
| Overall Depth | 1.43 in |
| Includes Locking Handle | Yes |
| Height Under Arm | 0.48 in |
| Overall Width | 1.02 in |
| Body Material | Stainless Steel |
| Mounting Holes Center to Center - Long Side | 0.62 in |
| Holding Capacity - Maximum | 200 lbf |
| Clamp Arm Opening Angle | 90 deg |
| Base Mounting Style | Flange |
| Mounting Holes Center to Center - Short Side | 0.53 in |
| Tip Material | Stainless Steel |
| Arm Length | 1.2 in |
| Arm Style | U-Bar |
| Accommodates Workpiece Variation | No |
| Package Quantity | 1 |
