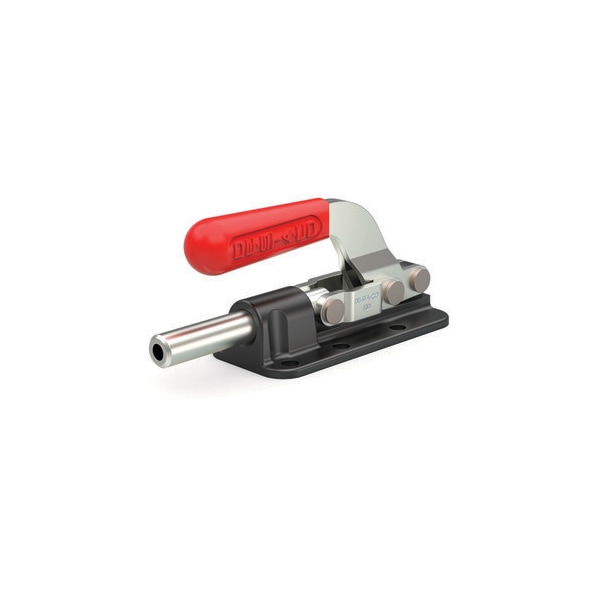

Clamp Straight-Line Action 630-M
| Item | Clamp Straight-Line Action 630-M |
|---|---|
| Application | Metalworking, Welding, Assembly And Light Machining Fixture |
| Overall Length | 7.06 in |
| Overall Width | 2-1/4 in |
| Handle Orientation | Horizontal |
| Exerted Force : Applied Force - Pulling | 23:1 |
| Handle Color | Red |
| Plunger Thread | M10 |
| Body Material | Steel |
| Exerted Force : Applied Force - Pushing | 36:1 |
| Plunger Height | 0.81 in |
| Holding Capacity - Maximum | 2,500 lbf |
| Includes Spindle | No |
| Locking Position | Extended, Retracted |
| Base Mounting Style | Flange |
| Includes Locking Handle | No |
| Recommended Spindle Manufacturer Model Number | 210,203-M |
| Plunger Travel1 | 2 in |
| Arm Length | 2.03 in |
| Tip Diameter | 11/16 in |
| Mounting Holes Center to Center - Short Side | 1.63 in |
| Reflectivity | Reflective |
| Clamping Force | 2,500 lb |
| Tip Material | Steel |
| Spindle Thread Size | M10 |
| Spindle Material | Steel |
| Requires Articulation | No |
| Overall Depth | 3.05 in |
| Plunger Shape | Round |
| Handle Material | Steel with Plastic Cover |
| Fastener Thread Size | 5/16 in |
| Accommodates Workpiece Variation | No |
| Mounting Holes Center to Center - Long Side | 3 in |
| Height Under Arm | 0.81 in |
| Includes Mounting Nut | No |
| Series | 600 Series Straight Line |
| Package Quantity | 1 |
