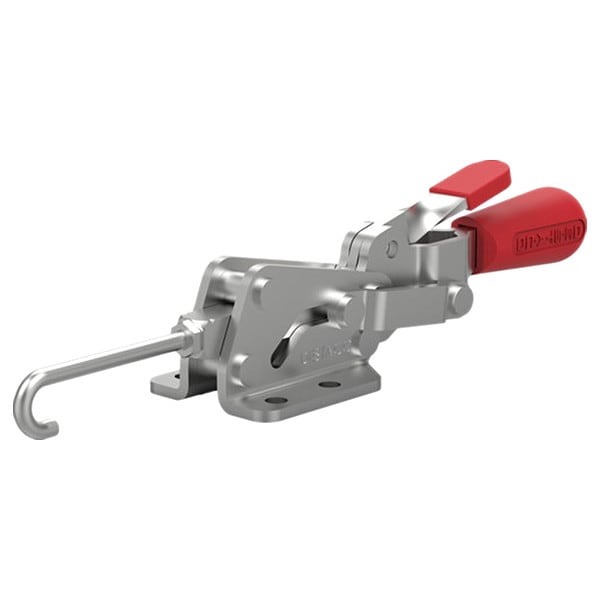

Controlled Latch Clamp, 8.06 in L
| Item | Controlled Latch Clamp |
|---|---|
| Body Material | Stainless Steel |
| Spindle Material | Not Applicable |
| Application | Assembly Checking Fixtures, Closures for Doors, Covers, Lids, Molding |
| Includes | Jam Nut, Threaded J-Hook, Toggle Lock Plus |
| Tip Diameter | Not Applicable |
| Holding Capacity - Maximum | 200 lbf |
| Requires Articulation | No |
| Spindle Thread Size | Not Applicable |
| Mounting Holes Center to Center - Short Side | 3/4 in |
| Exerted Force : Applied Force - Pushing | Not Applicable |
| Drawing Movement With Thumb Control | 1/2 in |
| Mounting Holes Center to Center - Long Side | 1.22 in |
| Tip Material | Not Applicable |
| Handle Material | Stainless Steel |
| Hook Type | J |
| Base Mounting Style | Flange |
| Height Under Arm | 0.48 in |
| Drawing Movement Without Thumb Control | 1/2 in |
| Includes Locking Handle | Yes |
| Exerted Force : Applied Force - Pulling | 12:1 |
| Handle Orientation | Horizontal |
| Overall Width | 1.69 in |
| Reflectivity | Reflective |
| Fastener Thread Size | #10 |
| Arm Length | 2.02 in |
| Overall Depth | 1.35 in |
| Recommended Latch Plate Manufacturer Model Number | Not Applicable |
| Hook Adjustment - Maximum | 0.39 in |
| Handle Color | Red |
| Overall Length | 8.06 in |
| Includes Latch Plate | No |
| Package Quantity | 1 |
