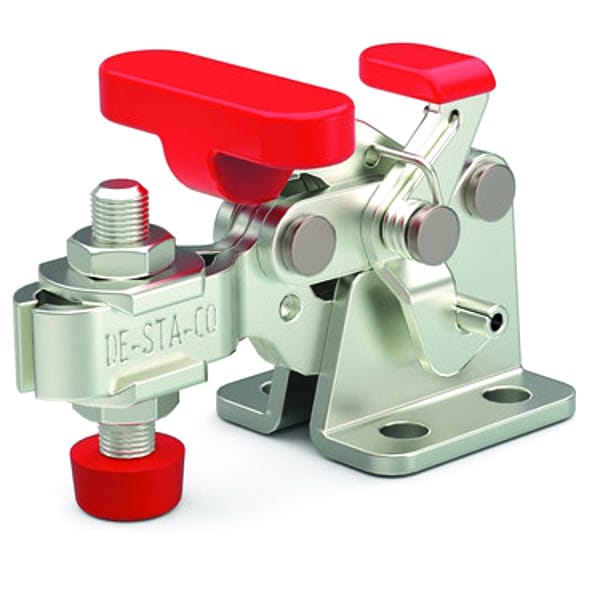

GHB-1340A W-ACU-RITE 203 2-AX DRO
| Overall Length | 3.61 in |
|---|---|
| Features | Stainless Steel Design, U-Bar Clamping Arm with Stainless Steel Hex Head Spindle Compact Design For Confined Spaces |
| Includes | Flanged Washers, Spindle Assembly |
| Overall Height | 2.3600" |
| Application | Assembly, Checking Fixtures, Closures, Food Processing, Welding, Wood Working |
| Item | Hold-Down Clamp |
| Base Width | 1.8 in |
| Base Length | 1.72 in |
| Base Material | Stainless Steel |
| Height Under Bar | 0.89 in |
| Bar Width | 1/2 in |
| Distance Between Mount Holes | 0.91 in |
| Handle Movement Angle | 173 deg |
| Holding Capacity | 350 lb |
| Bar Opening Angle | 92 deg |
| Bar Type | U-Bar |
| Clamping Orientation | Horizonal |
| Bar Length | 1.89 in |
| Base Type | Flange |
| Arm Length | 1.89 in |
| Accommodates Workpiece Variation | No |
| Overall Depth | 2.36 in |
| Overall Width | 1.8 in |
| Tip Material | Stainless Steel |
| Height Under Arm | 0.89 in |
| Body Material | Stainless Steel |
| Arm Style | U-Bar |
| Mounting Holes Center to Center - Long Side | 1.14 in |
| Handle Orientation | Horizontal |
| Clamp Arm Opening Angle | 92 deg |
| Mounting Holes Center to Center - Short Side | 0.91 in |
| Base Mounting Style | Flange |
| Includes Locking Handle | Yes |
| Holding Capacity - Maximum | 350 lbf |
| Package Quantity | 1 |
