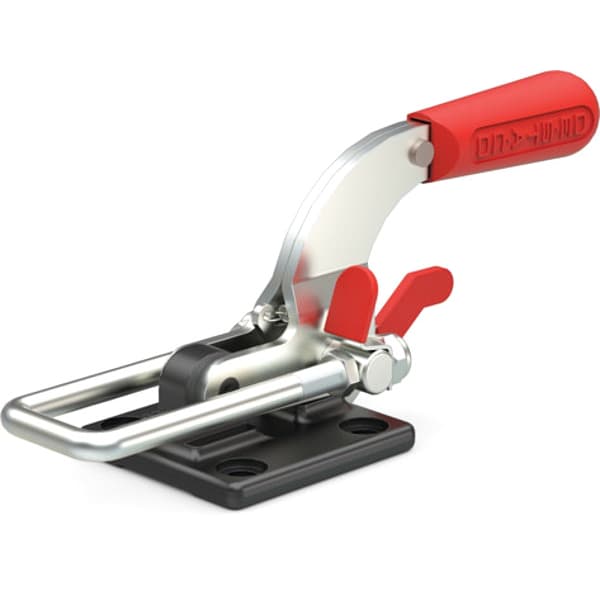

Latch Clamp, U-Bolt, w/Lever, 4000 Lbs, 4.19
| Item | Latch Clamp |
|---|---|
| Type | U-Bolt |
| Holding Capacity (Lb.) | 4,000 |
| Overall Height (In.) | 4.19 |
| Body Material | Steel |
| Latch | Centerline 1.13 in |
| Overall Length (In.) | 10.19 |
| Base Mounting Centers (In.) | 2-1/4 x 2-1/4 |
| Arm | U Bolt |
| Adjustable Range | 0 to 0.69 |
| Dia. (In.) | 0.41 |
| Includes | Ergonomic Grip, Latch Plate 385102 is Not Included Must be Ordered Through Grainger Sourcing |
| Application | Clamping, Latching |
| Hook Adjustment - Maximum | 0.81 in |
| Holding Capacity - Maximum | 4,000 lbf |
| Exerted Force : Applied Force - Pulling | 44:1 |
| Overall Width | 3.13 in |
| Hook Type | Horizontal U |
| Base Mounting Style | Flange |
| Requires Articulation | Yes |
| Mounting Holes Center to Center - Long Side | 2-1/4 in |
| Overall Depth | 4.19 in |
| Includes Locking Handle | Yes |
| Overall Length | 10.19 in |
| Handle Orientation | Horizontal |
| Exerted Force : Applied Force - Pushing | 44:1 |

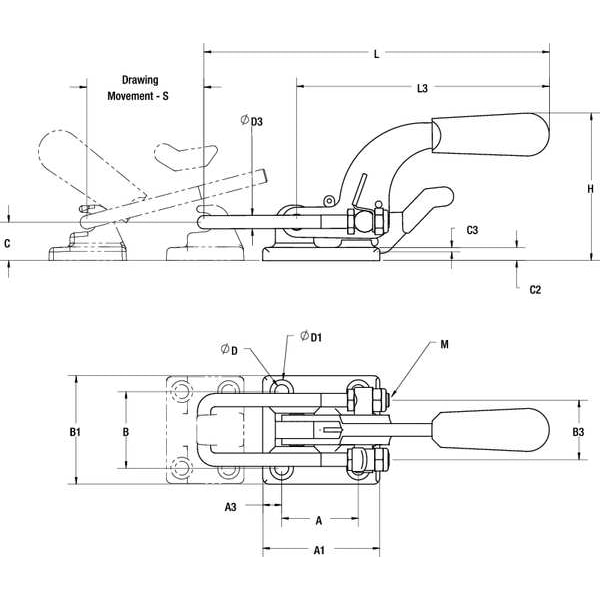

| Drawing Movement Without Thumb Control | 3-1/2 in |
| Includes Latch Plate | No |
| Recommended Latch Plate Manufacturer Model Number | 375509/385102 |
| Mounting Holes Center to Center - Short Side | 2-1/4 in |
| Package Quantity | 1 |
