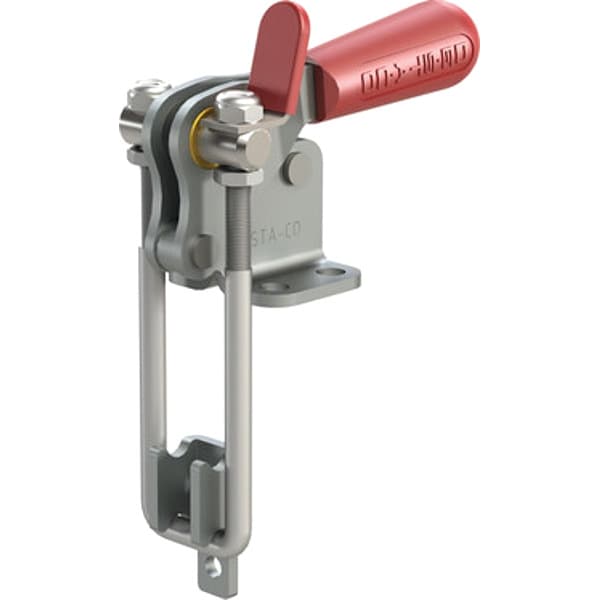

Latch Clamp, Vertical, 2000 Lbs, 3.39 In
| Item | Latch Clamp |
|---|---|
| Type | U-Bolt |
| Holding Capacity (Lb.) | 2,000 |
| Overall Height (In.) | 3.39 |
| Body Material | Steel |
| Overall Length (In.) | 5.77 |
| Latch | Centerline 0.16 |
| Base Mounting Centers (In.) | 1-1/4 x 1.44 |
| Dia. (In.) | 0.34 |
| Adjustable Range | 0 to 1.26 |
| Includes | Latch Plate |
| Arm | U-Shaped |
| Application | Clamping, Latching |
| Hook Type | Vertical U |
| Includes Locking Handle | No |
| Includes Latch Plate | Yes |
| Mounting Holes Center to Center - Long Side | 1.44 in |
| Mounting Holes Center to Center - Short Side | 1-1/4 in |
| Requires Articulation | Yes |
| Exerted Force : Applied Force - Pulling | 45:1 |
| Handle Orientation | Horizontal |
| Overall Length | 5.77 in |
| Drawing Movement Without Thumb Control | 2.46 in |
| Holding Capacity - Maximum | 2,000 lbf |
| Exerted Force : Applied Force - Pushing | 45:1 |
| Hook Adjustment - Maximum | 1.22 in |
| Overall Width | 2.12 in |
| Base Mounting Style | Flange |
| Recommended Latch Plate Manufacturer Model Number | 344101 |
| Overall Depth | 3.39 in |
| Package Quantity | 1 |
