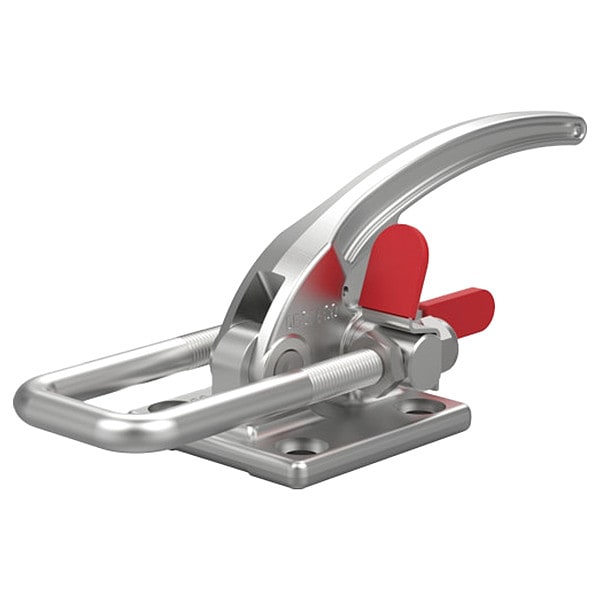

Locking Latch Clamp, 10.65 in L, 3.13 in W
| Item | Locking Latch Clamp |
|---|---|
| Body Material | Stainless Steel |
| Spindle Material | Not Applicable |
| Includes | Lock Nuts, Threaded U-Hooks, Thumb Tab Lever, Toggle Lock Plus |
| Application | Access Covers, Containers, Doors, Drums, Lids, Molds, Vessels |
| Height Under Arm | 1.13 in |
| Requires Articulation | Yes |
| Mounting Holes Center to Center - Long Side | 2-1/4 in |
| Reflectivity | Reflective |
| Base Mounting Style | Flange |
| Fastener Thread Size | 3/8 in |
| Exerted Force : Applied Force - Pushing | Not Applicable |
| Drawing Movement With Thumb Control | 2.19 in |
| Overall Width | 3.13 in |
| Tip Material | Not Applicable |
| Handle Orientation | Horizontal |
| Drawing Movement Without Thumb Control | 2.19 in |
| Overall Depth | 3.67 in |
| Recommended Latch Plate Manufacturer Model Number | 385902 |
| Hook Type | Horizontal U |
| Mounting Holes Center to Center - Short Side | 2-1/4 in |
| Tip Diameter | Not Applicable |
| Spindle Thread Size | Not Applicable |
| Exerted Force : Applied Force - Pulling | 44:1 |
| Hook Adjustment - Maximum | 1.36 in |
| Handle Material | Stainless Steel |
| Arm Length | 4.19 in |
| Includes Latch Plate | No |
| Holding Capacity - Maximum | 7,500 lbf |
| Includes Locking Handle | Yes |
| Overall Length | 10.65 in |
| Handle Color | Not Applicable |
| Package Quantity | 1 |
