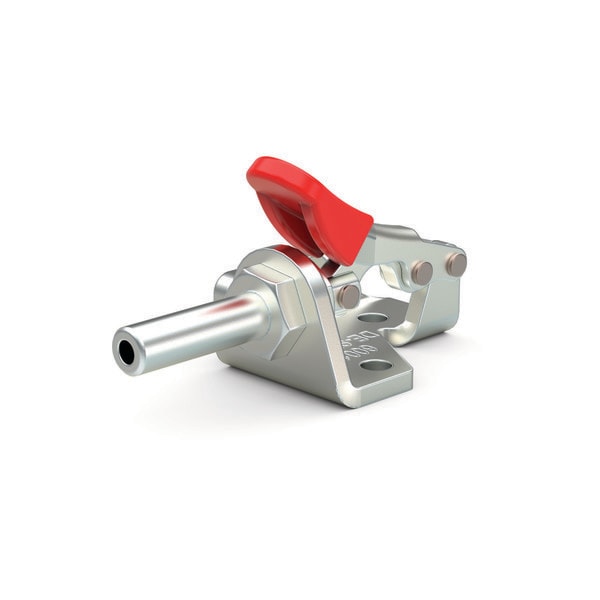

Plunger Clamp 6001-M
| Item | Plunger Clamp 6001-M |
|---|---|
| Includes | Neoprene Tipped Spindle |
| Application | Metalworking, Welding, Assembly And Light Machining Fixture |
| Overall Width | 1.23 in |
| Overall Length | 2.63 in |
| Locking Position | Extended, Retracted |
| Exerted Force : Applied Force - Pushing | 14:1 |
| Body Material | Steel |
| Handle Orientation | Horizontal |
| Includes Locking Handle | No |
| Includes Spindle | Yes |
| Exerted Force : Applied Force - Pulling | 25:1 |
| Plunger Travel1 | 0.63 in |
| Plunger Height | 1/2 in |
| Handle Color | Red |
| Holding Capacity - Maximum | 150 lbf |
| Base Mounting Style | Flange |
| Plunger Thread | M4 |
| Mounting Holes Center to Center - Short Side | 0.63 in |
| Height Under Arm | 1/2 in |
| Reflectivity | Reflective |
| Recommended Spindle Manufacturer Model Number | 205,208-M |
| Plunger Shape | Round |
| Overall Depth | 1.27 in |
| Arm Length | 1.1 in |
| Clamping Force | 150 lb |
| Fastener Thread Size | 3/16 in |
| Tip Material | Neoprene |
| Includes Mounting Nut | No |
| Handle Material | Steel with Plastic Cover |
| Mounting Holes Center to Center - Long Side | 0.63 in |
| Spindle Thread Size | M4 |
| Requires Articulation | No |
| Tip Diameter | 3/8 in |
| Accommodates Workpiece Variation | No |
| Spindle Material | Steel |
| Series | 6000 Series Straight Line |
| Package Quantity | 1 |
