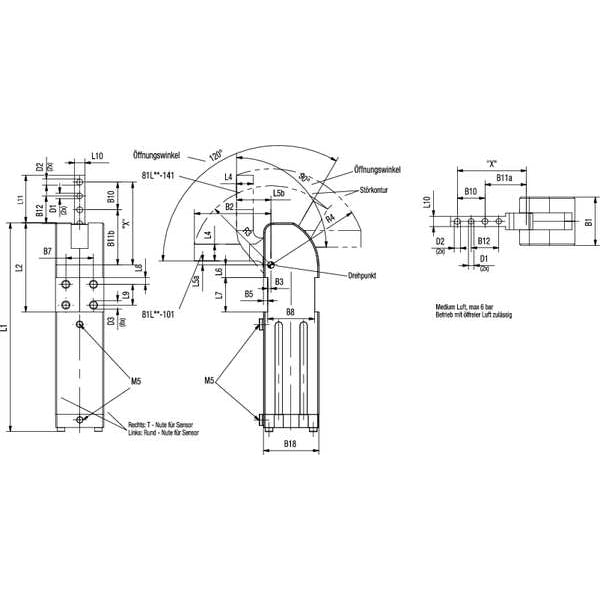

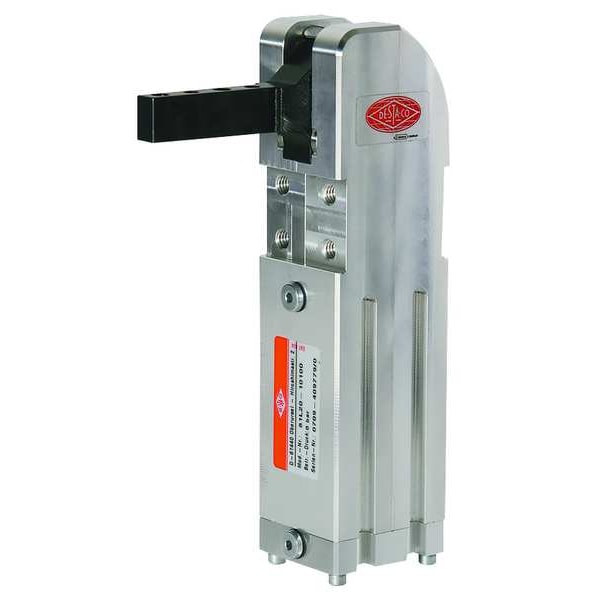

Pneumatic Clamp, 81L25, 90 Deg, 708 In-Lbs
| Item | Pneumatic Swing and Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 708 |
| Arm | 90 Degrees |
| Material | Aluminum, Steel Arm |
| Operating Temp. | -14 to +195 F |
| Max. Input Air Pressure (PSI) | 120 |
| Type | 81L25 |
| Base Mounting Centers (In.) | 0.7874 x 0.5906 |
| Max. Torque (In.-Lbs.) | 708 |
| Body Material | Aluminum |
| Overall Width | 2.54 in |
| Port Size | M6 |
| Arm Length | 2.58 in |
| Arm Swing Angle | 90 deg |
| Holding Capacity | 708 lb |
| Max. Input Air Pressure | 120 psi |
| Min. Operating Temperature | -14 deg F |
| Max. Operating Temperature | 195 deg F |
| Arm Material | Aluminum |
| Air Connection Type | G |
| Air Connection Size | M5 |
| Plunger Travel | Not Applicable |
| Air Connection Center-to-Center Distance | 0.59 in |
| Arm Tapered End Height | 2.54 in |
| Overall Height | 5.94 in |
| Plunger Height | Not Applicable |
| Arm Overall Height | 0.47 in |
| Overall Length | 5.94 in |
| Plunger Thread | Not Applicable |
| Input Air Pressure - Maximum | 6 bar |
| Threaded Body Thread Size | Not Applicable |
| Operating Temperature - Maximum | 195 deg F |
| Total Stroke Length | Not Applicable |
| Operating Temperature - Minimum | -14 deg F |
| Cylinder Bore Size | 25 mm |
| Package Quantity | 1 |
