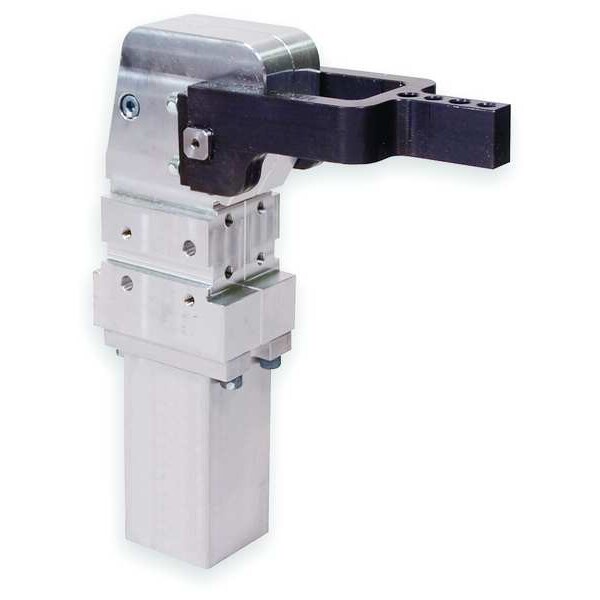

Pneumatic Clamp, 82L4G, 3360 In-Lbs
| Item | Pneumatic Swing and Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 3,360 |
| Material | Aluminum, Steel Arm |
| Operating Temp. | -14 to +195 F |
| Max. Input Air Pressure (PSI) | 120 |
| Base Mounting Centers (In.) | 0.9843 x 0.7874 |
| Features | Enclosed Model with Hand Lever, Lightweight Design |
| Type | 82L4G |
| Max. Torque (In.-Lbs.) | 3,360 |
| Overall Width | 74 mm |
| Holding Capacity | 3,360 lb |
| Max. Input Air Pressure | 120 psi |
| Port Size | G1/4 |
| Max. Operating Temperature | 195 deg F |
| Min. Operating Temperature | -14 deg F |
| Body Material | Aluminum |
| Arm Material | Steel |
| Overall Length | 824 mm |
| Operating Temperature - Maximum | 195 deg F |
| Arm Length | 110 mm |
| Body Mounting Type | Threaded |
| Total Stroke Length | 0.04 in |
| Arm Overall Height | 721 mm |
| Arm Swing Angle | 90 deg |
| Air Connection Center-to-Center Distance | 0.04 in |
| Operating Temperature - Minimum | -14 deg F |
| Input Air Pressure - Maximum | 87 psi |
| Air Connection Size | 1/4 in |
| Air Connection Type | NPT |
| Compatible Manufacturer Model Number | Mfr. No. 82L4G-2 |
| Clamping Force - Maximum | 89 lbf |
| Threaded Body Thread Size | 1/4" |
| Overall Height | 241 mm |
| Package Quantity | 1 |
