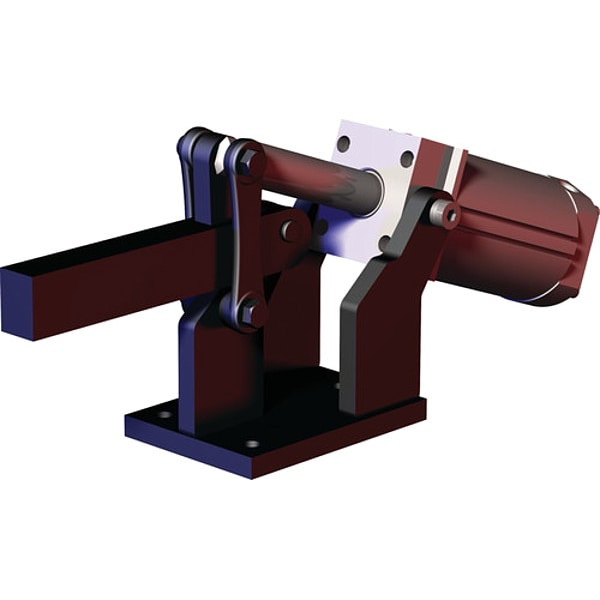

Pneumatic Hvy Dty Hold-Dwn Clamp, 4000lb.
| Item | Pneumatic Swing and Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 4,000 |
| Overall Height (In.) | 7-1/8 |
| Overall Length (In.) | 17.5156 |
| Height Under Arm (In.) | 3.8594 |
| Base Mounting Centers (In.) | 4-1/4 x 2-3/4 |
| Arm | Solid |
| Application | Automated Clamping In Heavy Duty Welding and Assembly Fabrication |
| Dia. (In.) | 0.41 |
| Construction | Welded Base with Hardened Pins for Linkage |
| Body Mounting Type | T-Slot Framing |
| Clamping Force - Maximum | 4,000 lbf |
| Operating Temperature - Minimum | -14 Degrees F |
| Plunger Travel | Not Applicable |
| Operating Temperature - Maximum | 194 Degrees F |
| Air Connection Center-to-Center Distance | 2-3/4 in |
| Arm Overall Height | 3.85 in |
| Overall Length | 17.52 in |
| Arm Length | 4.81 in |
| Overall Width | 4 in |
| Air Connection Size | 1/4 in |
| Overall Height | 12.27 in |
| Total Stroke Length | Not Applicable |
| Cylinder Bore Size | 2.48 in |
| Plunger Thread | Not Applicable |
| Threaded Body Thread Size | Not Applicable |
| Air Connection Type | NPT |
| Input Air Pressure - Maximum | 145 psi |
| Plunger Height | Not Applicable |
| Arm Swing Angle | 96 deg |
| Package Quantity | 1 |
