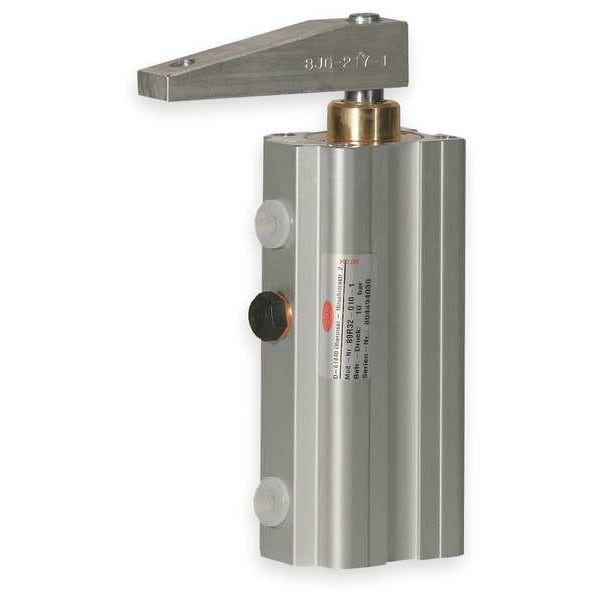

Pneumatic Swing Clamp, 28 mm, 62 Lb
| Item | Swing/Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 67 |
| Material | Aluminum |
| Operating Temp. | -14 to +195 F |
| Max. Input Air Pressure (PSI) | 145 |
| Features | Swing Direction is Field Adjustable Between Left or Right |
| Stroke (mm) | 28 |
| Includes | Clamp Only: Arm is Sold Separately |
| Base Mounting Centers (In.) | 1.4173 x 1.2598 |
| Max. Vertical Clamp Stroke | 28 mm |
| Max. Operating Temperature | 195 deg F |
| Holding Capacity | 67 lb |
| Body Material | Aluminum |
| Max. Input Air Pressure | 145 psi |
| Port Size | 1/8 in NPT |
| Application | Assembly, Light Machining, Welding |
| Min. Operating Temperature | -14 deg F |
| Total Stroke Length | 1.1 in |
| Clamping Force - Maximum | 55 lbf |
| Air Connection Center-to-Center Distance | 3.27 in |
| Stroke Length During Rotation | 0.61 in |
| Air Connection Size | 1/8 in |
| Input Air Pressure - Maximum | 120 psi |
| Threaded Body Thread Size | 1/8" |
| Number of Mounting Holes | 4 |
| Overall Width | 1.77 in |
| Operating Temperature - Minimum | -14 deg F |
| Overall Height | 4.92 in |
| Vertical Clamp Stroke - Maximum | 0.39 in |
| Body Mounting Type | T-Slot Framing |
| Cylinder Bore Size | 1.26 in |
| Operating Temperature - Maximum | 140 deg F |
| Movement Direction | Left, Right, Straight |
| Overall Length | 2.36 in |
| Air Connection Type | NPT |
| Package Quantity | 1 |
