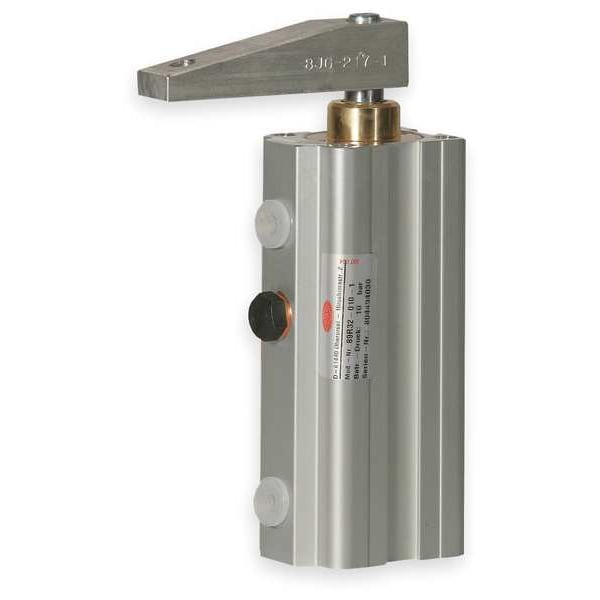

Pneumatic Swing Clamp, 31.5 mm, 94 Lb
| Item | Swing/Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 103 |
| Material | Aluminum |
| Operating Temp. | -14 to +195 F |
| Max. Input Air Pressure (PSI) | 145 |
| Stroke (mm) | 31.5 |
| Includes | Clamp Only: Arm is Sold Separately |
| Features | Swing Direction is Field Adjustable Between Left or Right |
| Base Mounting Centers (In.) | 1.5748 x 1.5748 |
| Application | Assembly, Light Machining, Welding |
| Max. Input Air Pressure | 145 psi |
| Min. Operating Temperature | -14 deg F |
| Holding Capacity | 103 lb |
| Port Size | 1/8 in NPT |
| Max. Operating Temperature | 195 deg F |
| Body Material | Aluminum |
| Max. Vertical Clamp Stroke | 31.5 mm |
| Clamping Force - Maximum | 85 lbf |
| Total Stroke Length | 1.24 in |
| Number of Mounting Holes | 4 |
| Threaded Body Thread Size | 1/8" |
| Air Connection Size | 1/8 in |
| Vertical Clamp Stroke - Maximum | 0.39 in |
| Air Connection Type | NPT |
| Operating Temperature - Maximum | 140 deg F |
| Air Connection Center-to-Center Distance | 3.74 in |
| Overall Height | 5.51 in |
| Overall Length | 2.6 in |
| Operating Temperature - Minimum | -14 deg F |
| Stroke Length During Rotation | 0.85 in |
| Input Air Pressure - Maximum | 120 psi |
| Body Mounting Type | T-Slot Framing |
| Movement Direction | Left, Right, Straight |
| Cylinder Bore Size | 1.57 in |
| Overall Width | 2.15 in |
| Package Quantity | 1 |
