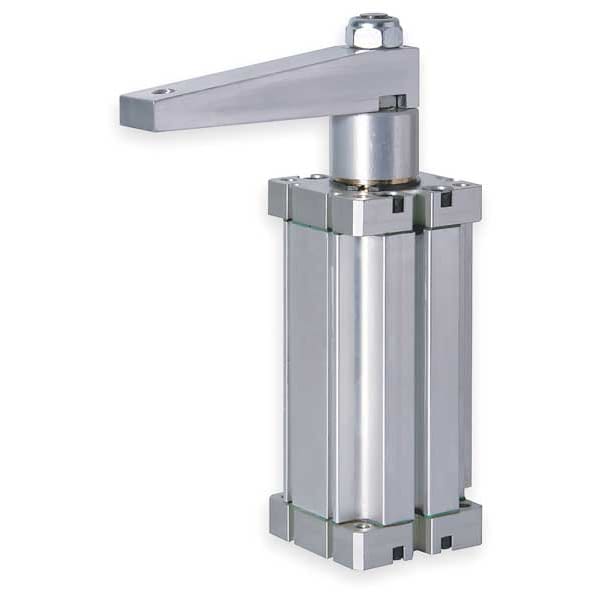

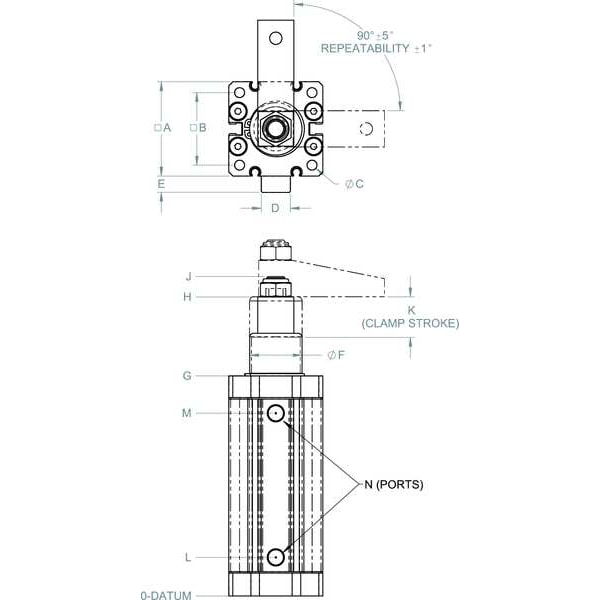

Pneumatic Swing Clamp, LH Swing, 105 Lb
| Item | Pneumatic Swing and Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 160 |
| Material | Aluminum |
| Operating Temp. | -14 Degrees to +140 Degrees F |
| Max. Input Air Pressure (PSI) | 120 |
| Stroke (mm) | 20 |
| Features | Shielded Piston Rod for Protection from Weld Spatter |
| Includes | Clamp Only: Arm is Sold Separately |
| Type | LH Swing |
| For Use With | Nos. 3CXN2, 3CXN3 Clamp Arms |
| Base Mounting Centers (In.) | 1.5748 x 1.5748 |
| Overall Height | 7.52 in |
| Body Material | Aluminum |
| Max. Operating Temperature | 140 deg F |
| Swing Direction | Left |
| Arm Height | 20.00mm |
| Min. Operating Temperature | -14 deg F |
| Arm Material | Aluminum |
| Holding Capacity | 160 lb |
| Max. Vertical Clamp Stroke | 20 mm |
| Port Size | 1/8 in NPT |
| Arm Swing Angle | 90 deg |
| Max. Input Air Pressure | 120 psi |
| Body Mounting Type | Mounting Holes |
| Air Connection Center-to-Center Distance | 1.48 in |
| Movement Direction | Left |
| Cylinder Bore Size | 1.57 in |
| Overall Length | 7.52 in |
| Plunger Travel | Not Applicable |
| Operating Temperature - Minimum | -14 deg F |
| Arm Overall Height | 1.66 in |
| Input Air Pressure - Maximum | 120 psi |
| Operating Temperature - Maximum | 140 deg F |
| Clamping Force - Maximum | 123 lbf |
| Air Connection Size | 1/8 in |
| Vertical Clamp Stroke - Maximum | 0.79 in |
| Stroke Length During Rotation | 0 in |
| Air Connection Type | NPT |
| Total Stroke Length | 0.79 in |
| Arm Length | 2.76 in |
| Plunger Height | Not Applicable |
| Threaded Body Thread Size | Not Applicable |
| Plunger Thread | M8 |
| Overall Width | 2.05 in |
| Package Quantity | 1 |
