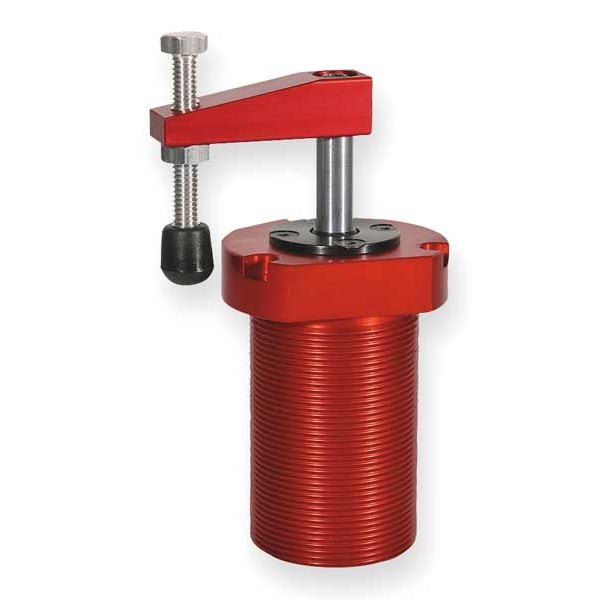

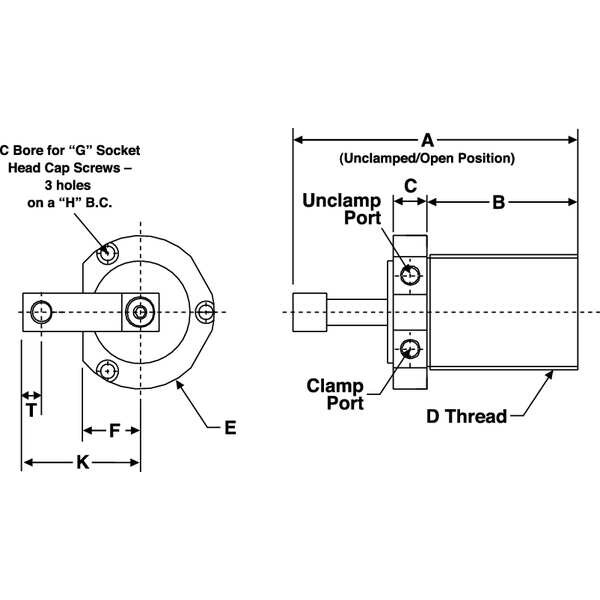

Pneumatic Swing Clamp, LH Swing, 80 Lb
| Item | Pneumatic Swing and Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 89 |
| Material | Aluminum |
| Operating Temp. | -14 to +195 F |
| Max. Input Air Pressure (PSI) | 130 |
| Includes | Spindle 485203-AL |
| Type | LH Swing |
| Features | Sensor Ready for use with Round Style Sensor |
| Base Mounting Centers (In.) | 2-1/4-12 |
| Overall Height | 5.14 in |
| Max. Input Air Pressure | 130 psi |
| Port Size | 1/8 in NPT |
| Max. Vertical Clamp Stroke | 12.7 mm |
| Application | Assembly, Light Machining, Welding |
| Swing Direction | Left |
| Holding Capacity | 89 lb |
| Max. Operating Temperature | 195 deg F |
| Min. Operating Temperature | -14 deg F |
| Body Material | Aluminum |
| Movement Direction | Left |
| Vertical Clamp Stroke - Maximum | 1/2 in |
| Arm Material | Aluminum |
| Cylinder Bore Size | 1-1/2 in |
| Plunger Travel | Not Applicable |
| Plunger Thread | 3/8"-16 |
| Operating Temperature - Minimum | -14 deg F |
| Arm Swing Angle | 90 deg |
| Threaded Body Thread Size | 2-1/4 in to 12 |
| Plunger Height | Not Applicable |
| Overall Width | 3 in |
| Body Mounting Type | Mounting Holes |
| Clamping Force - Maximum | 67 lbf |
| Input Air Pressure - Maximum | 130 psi |
| Operating Temperature - Maximum | 140 deg F |
| Arm Length | 2-3/4 in |
| Total Stroke Length | 1-1/4 in |
| Air Connection Size | 1/8 in |
| Arm Overall Height | 1.47 in |
| Air Connection Type | NPT |
| Stroke Length During Rotation | 3/4 in |
| Package Quantity | 1 |
