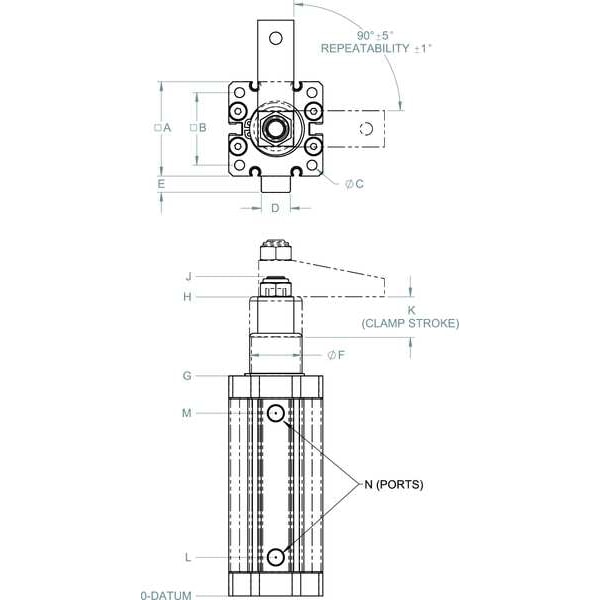

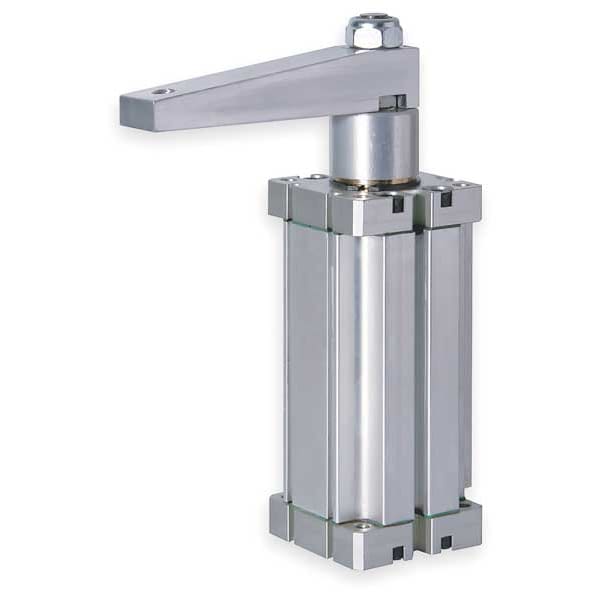

Pneumatic Swing Clamp, RH Swing, 61 Lb
| Item | Pneumatic Swing and Toggle Clamp |
|---|---|
| Holding Capacity (Lb.) | 90 |
| Material | Aluminum |
| Operating Temp. | -14 Degrees to +140 Degrees F |
| Max. Input Air Pressure (PSI) | 120 |
| Includes | Clamp Only: Arm is Sold Separately |
| Features | Shielded Piston Rod for Protection from Weld Spatter |
| Stroke (mm) | 20 |
| Base Mounting Centers (In.) | 1.3386 x 1.3386 |
| For Use With | Nos. 3CXN2, 3CXN3 Clamp Arms |
| Type | RH Swing |
| Port Size | 1/8 in NPT |
| Swing Direction | Right |
| Max. Operating Temperature | 140 deg F |
| Max. Input Air Pressure | 120 psi |
| Arm Material | Aluminum |
| Overall Height | 7.33 in |
| Max. Vertical Clamp Stroke | 20 mm |
| Body Material | Aluminum |
| Arm Swing Angle | 90 deg |
| Holding Capacity | 90 lb |
| Min. Operating Temperature | -14 deg F |
| Arm Height | 20.00mm |
| Operating Temperature - Minimum | -14 deg F |
| Air Connection Size | 1/8 in |
| Air Connection Center-to-Center Distance | 1.48 in |
| Stroke Length During Rotation | 0 in |
| Arm Length | 2.76 in |
| Overall Width | 1.81 in |
| Total Stroke Length | 0.79 in |
| Vertical Clamp Stroke - Maximum | 0.79 in |
| Overall Length | 7.33 in |
| Plunger Travel | Not Applicable |
| Input Air Pressure - Maximum | 120 psi |
| Movement Direction | Right |
| Body Mounting Type | Mounting Holes |
| Operating Temperature - Maximum | 140 deg F |
| Threaded Body Thread Size | Not Applicable |
| Plunger Height | Not Applicable |
| Plunger Thread | M8 |
| Arm Overall Height | 1.61 in |
| Air Connection Type | NPT |
| Clamping Force - Maximum | 76 lbf |
| Cylinder Bore Size | 1.26 in |
| Package Quantity | 1 |
