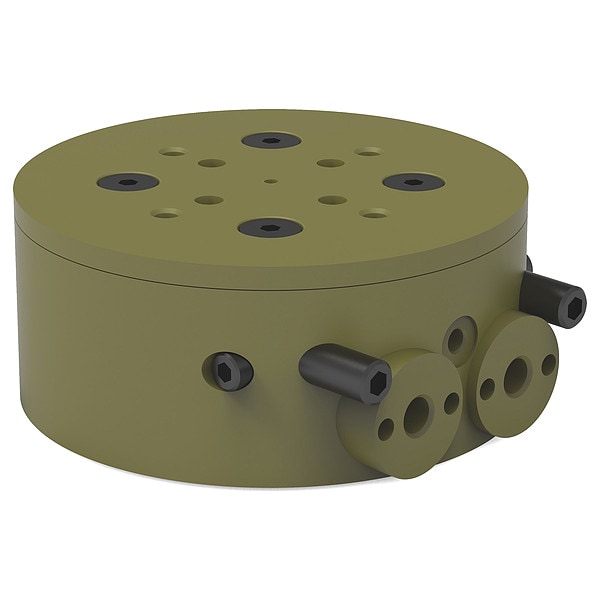

Rotary Actuator, 180 Deg Rotation
| Item | Rotary Actuator |
|---|---|
| Height | 0.969 in |
| Length | 2-1/4 in |
| Width | 2.42 in |
| Port Size | 2 x M5 |
| Rotation Angle (Deg.) | 180 |
| Torque (In.-Lbs.) | 0.7 in-lb |
| Operating Temp. Range | -30 to 180 deg F |
| Maximum Pressure | 100 psi |
| Overall Width | 2-1/4 in |
| Shaft Length | 1/8 in |
| Rotation Angle | 180 deg |
| Actuator Style | Double Rack |
| Maximum Operating Pressure | 0.69 MPa |
| Air Inlet Center to Center Distance | 3/4 in |
| Cushion Type | None |
| Overall Length | 2-1/4 in |
| Overall Height | 1 in |
| For Fluid Type | Air |
| System of Measurement | Inch |
| Bore Diameter | 1/2 in |
| Inlet Size | 5/16 in |
| Shaft Diameter | 2-1/4 in |
| Maximum Output Torque | 6.5 in-lb |
| Minimum Operating Temperature | -30 deg F |
| Air Inlet Type | NPT |
| Maximum Operating Temperature | 180 deg F |
| Weight | 0.48 lb |
| Minimum Operating Pressure | 29.99 psi |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
